What is the Hoop House Calculator?

A hoop house (also called a high tunnel or polytunnel) is an unheated greenhouse built from a series of semicircular hoops covered with greenhouse plastic. This calculator estimates how much cover material you need by treating each hoop as half a circle and multiplying its arc length by the length of the structure.

How to use it

Enter the hoop width (diameter) — the distance across the base of the arch — and the house length running down the structure. The calculator returns the arc length of one hoop and the total square footage of plastic needed to cover the curved roof from ground to ground.

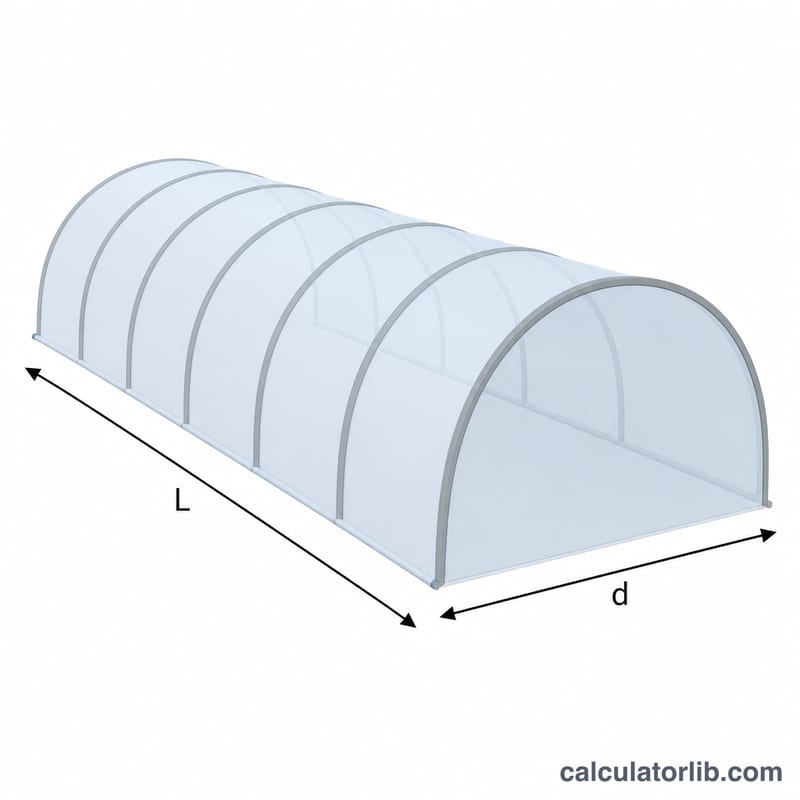

3D view of a hoop house tunnel showing arc width and length dimensions
Total cover area multiplies the arc length across the full length L of the tunnel.

The formula explained

A semicircle's arc length is half the circumference of a full circle: \(\frac{\pi \times d}{2}\). Because the cover drapes over every point along the length of the house, you multiply that arc length by the house length to get the curved surface area:

$$\text{Cover Area} = \frac{\pi \times d}{2} \times L$$

This covers the roof; add extra for end walls, burying the edges, and overlap.

Advertisement

Worked example

For a hoop 12 ft wide on a 20 ft long house: arc length = \(\frac{\pi \times 12}{2} = 18.85\) ft. Cover area = \(18.85 \times 20 = 376.99\) sq ft. Buy a roll at least this wide and long, plus 2–3 ft extra on each dimension for anchoring.

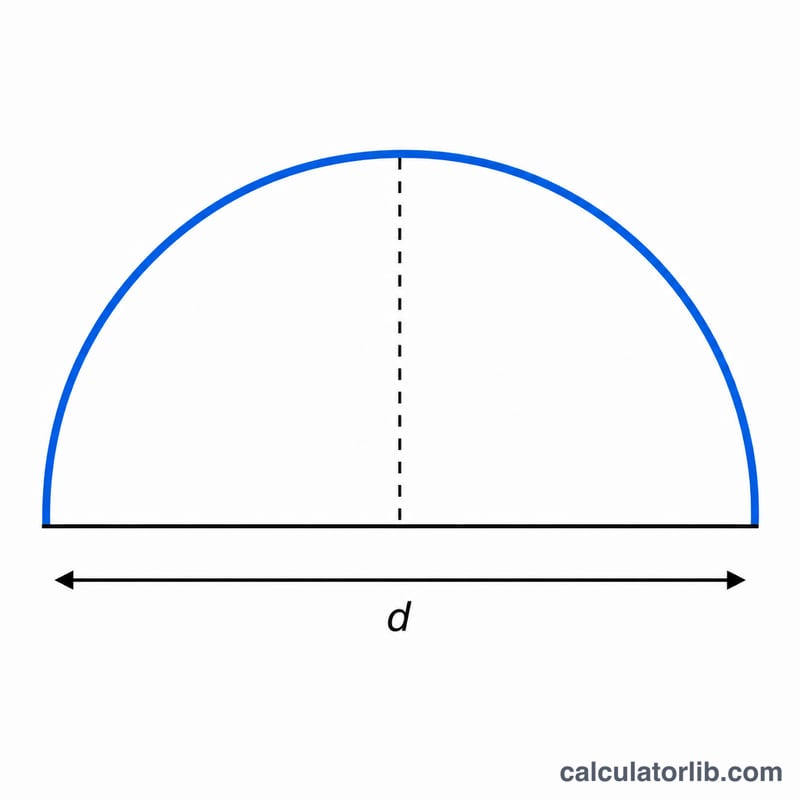

Cross-section of a semicircular hoop house showing width as diameter and the arched cover
The hoop forms a semicircle whose arc length equals half the circle's circumference (\(\frac{\pi \times d}{2}\)).

Cover Area for Common Hoop House Sizes

These figures assume a semicircular cross-section, so the arc length of each hoop is \(\frac{\pi d}{2}\) and the cover area (roof only, no end walls) is \(\frac{\pi d}{2} \times L\). For example, a 12 ft wide, 20 ft long house has an arc of \(\frac{\pi \times 12}{2} = 18.85\) ft and a cover area of \(18.85 \times 20 = \)376.99 sq ft.

Width (ft) Arc length (ft) 12 ft long (sq ft) 20 ft long (sq ft) 30 ft long (sq ft) 48 ft long (sq ft) 96 ft long (sq ft)
8 12.57 150.80 251.33 376.99 603.19 1,206.37
10 15.71 188.50 314.16 471.24 753.98 1,507.96
12 18.85 226.19 376.99 565.49 904.78 1,809.56
14 21.99 263.89 439.82 659.73 1,055.58 2,111.15
16 25.13 301.59 502.65 753.98 1,206.37 2,412.74
20 31.42 376.99 628.32 942.48 1,507.96 3,015.93

Note: many real hoop houses use a gothic or low-profile arch rather than a true semicircle, so the actual arc length can differ. These values are a baseline for a semicircular hoop. Areas are rounded to two decimals and do not include end walls or edge allowances.

Advertisement

Practical Tips for Ordering Plastic

  1. Add allowance for edges. Add roughly 1–3 ft to both the width (arc) and the length so you have enough to bury, clamp, or fasten the edges and to pull the film tight.
  2. Round up to standard roll sizes. Greenhouse film is sold in set widths and lengths. Compare your arc length plus allowance with the available roll widths and choose the next size up rather than the closest one below.
  3. Order end-wall plastic separately. The calculator covers the roof arc only. Each end wall is roughly a half-circle (about \(\frac{\pi d^2}{8}\) sq ft for a semicircular profile), minus any door or vent openings, and is usually cut from a separate piece.
  4. Allow for channel and batten overlap. If you use wiggle wire with aluminum channel, or battens and tape, allow a little extra for folds, overlaps, and trimming mistakes.
  5. Check film specs before buying. Confirm the film width, thickness (for example 6 mil), UV-stabilization rating and service life, and whether it is single-layer or inflated double-layer, since double-layer systems need extra material.
  6. Measure the real structure. Measure the actual hoop arc with a tape or string over the frame to confirm the calculated arc length, especially for non-semicircular profiles.

This is general planning information. Always check the supplier's recommendations for your specific frame and climate.

FAQ

Does this include the end walls? No — it only covers the curved roof. Size end-wall plastic separately based on the semicircle area (\(\frac{\pi \times r^2}{2}\)).

How much extra should I add? Add roughly 1–3 ft to both the width and length so you can bury or clamp the edges and allow for overlap.

What units? The tool is unit-agnostic but labeled in feet; if you enter meters, the area will be in square meters.
