What This Calculator Does

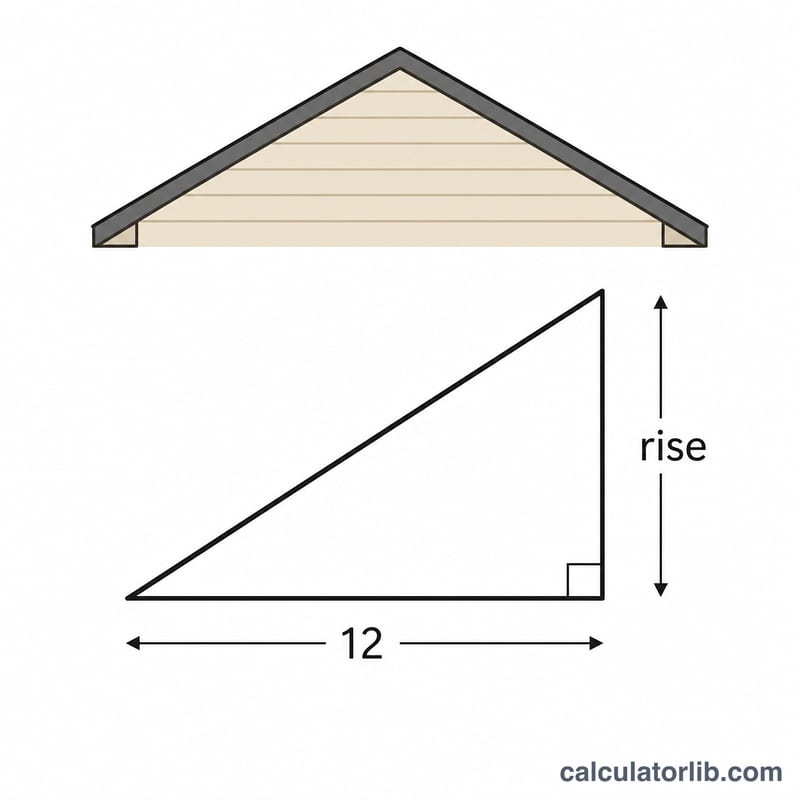

Estimate the actual roof surface area (which is bigger than the footprint because of the pitch), then convert to roofing squares, shingle bundles, and cost. Pitch is expressed as the standard rise/run ratio used by U.S. roofers (e.g. "6/12" means 6 inches of rise per 12 inches of horizontal run).
The Math
Roof Area = Footprint × √(1 + (rise/run)²)

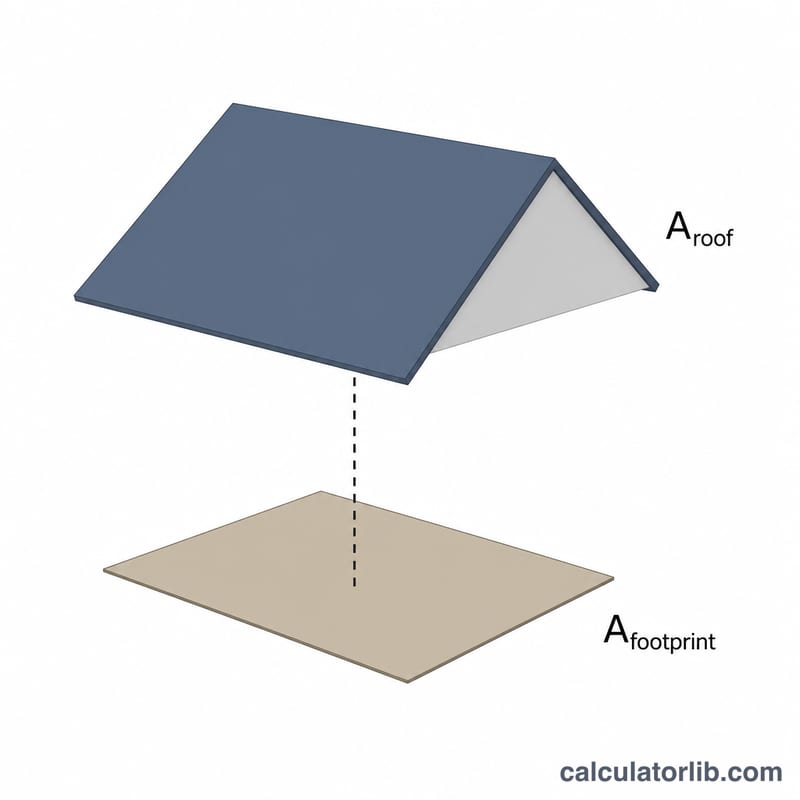

The square root term is the "slope multiplier" — it converts the flat horizontal footprint into the actual sloped surface a roofer must cover. For 6/12 pitch the multiplier is √1.25 ≈ 1.118, so a 1,500 sq ft house with a 6/12 roof actually has 1,677 sq ft of shingles.
Slope Multipliers Reference
| Pitch | Angle | Multiplier |
|---|---|---|
| 3/12 | 14.0° | 1.0308 |
| 4/12 | 18.4° | 1.0541 |
| 5/12 | 22.6° | 1.0833 |
| 6/12 | 26.6° | 1.1180 |
| 8/12 | 33.7° | 1.2019 |
| 10/12 | 39.8° | 1.3017 |
| 12/12 | 45.0° | 1.4142 |
Roofing Squares & Bundles

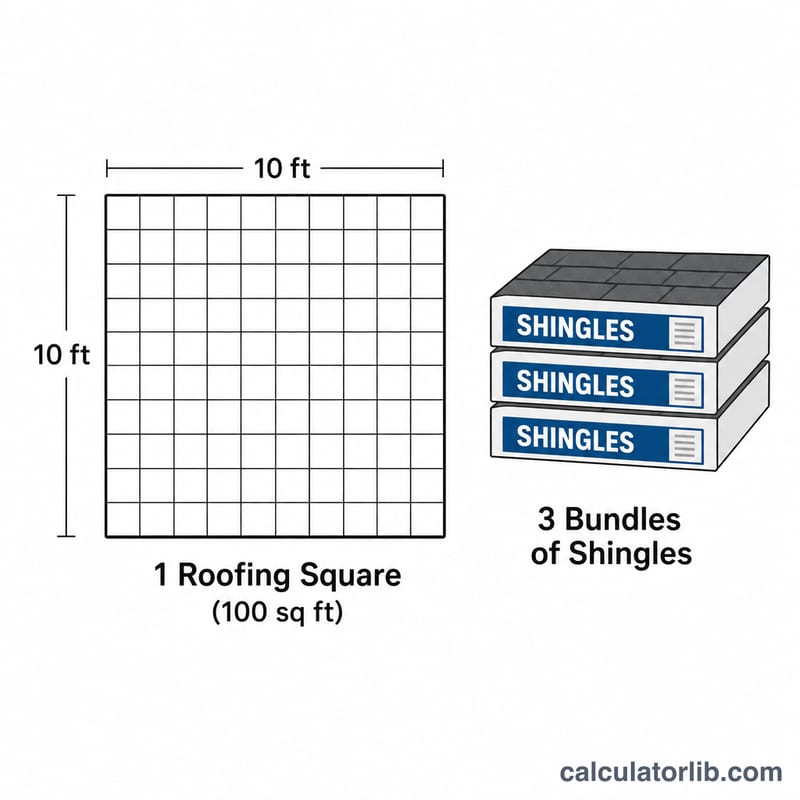

One roofing square = 100 sq ft. It's the unit roofers use for ordering shingles and quoting labor.
Standard 3-tab asphalt shingle bundles cover ~33.3 sq ft each, so 3 bundles per square. Architectural (dimensional) shingles vary: 25–32 sq ft per bundle. Always check the bundle label for exact coverage before ordering.
Worked Example
1,500 sq ft footprint with a 6/12 pitch:
- Slope multiplier = √(1 + (6/12)²) = √1.25 ≈ 1.118
- Roof area = 1,500 × 1.118 ≈ 1,677 sq ft
- Roofing squares = 1,677 / 100 ≈ 16.77 squares
- With 10% waste buffer: ~18.5 squares
- Bundles needed (33.3 sq ft each, with waste): ~56 bundles
Why You Need a Waste Buffer
Real roofs have hips, valleys, dormers, and chimneys that all create cuts and partial shingles. Standard waste allowance:
- Simple gable roof: 5–10% extra
- Hip roof: 10–15% (more cuts at corners)
- Complex roof with dormers/valleys: 15–20%
- Very steep (10/12+): add another 5% (slips, falls, awkward cuts)
Caveats
- Footprint ≠ floor area — use the building's actual roofed footprint (excluding cantilevered porches that have a separate roof).
- Eaves and overhangs not included — if your eaves are large, add 5–10% to the footprint before calculating.
- Hip vs gable. The math here treats the roof as a simple sloped plane. Hip roofs have the same total area as a gable of the same footprint and pitch — counter-intuitive but true. Complex shapes (gambrel, mansard, multi-pitch) need to be measured plane-by-plane.
- Underlayment, drip edge, and starter strips. Calculator estimates field shingles only — order felt/synthetic underlayment to match the same area, plus drip edge by linear foot of perimeter.
