What Is a Speeds and Feeds Calculator?
A speeds and feeds calculator helps machinists and hobbyists determine the correct spindle speed (RPM) and feed rate (inches per minute, IPM) for milling, drilling and routing operations. Choosing the right values protects your cutting tools, improves surface finish and maximizes material removal without breaking bits or burning material. This tool uses the standard imperial (inch / SFM) machining equations.
How to Use It
Enter four values: the recommended cutting speed for your material in surface feet per minute (SFM), the diameter of your cutting tool in inches, the chip load per tooth in inches, and the number of flutes (cutting edges) on the tool. The calculator returns the spindle speed in RPM and the table feed rate in IPM. SFM and chip load values come from tooling charts published by your tool or material supplier.
The Formula Explained

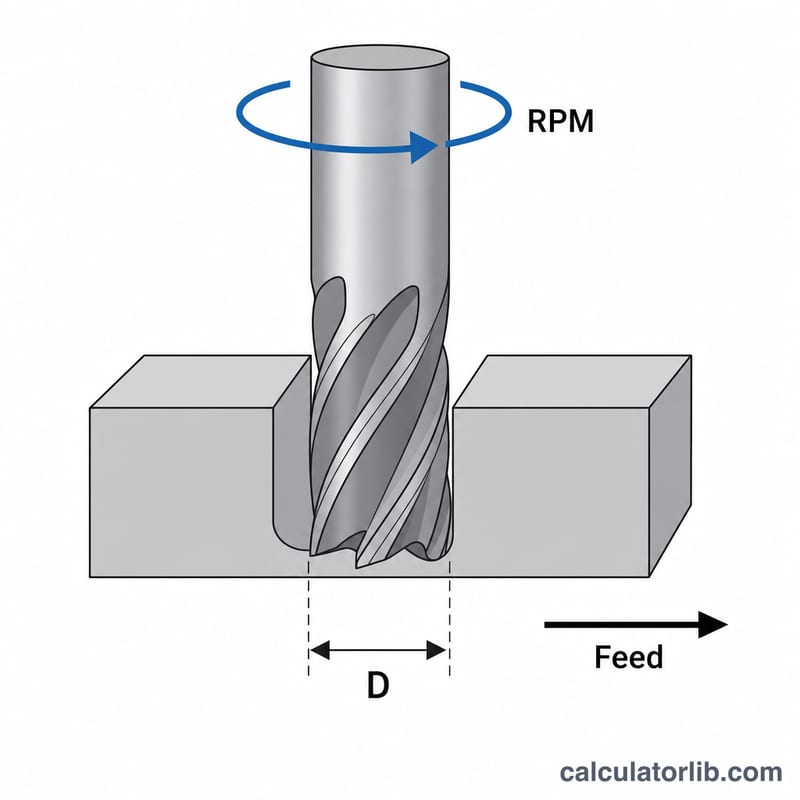

Spindle speed is found with $$\text{RPM} = \frac{12 \times \text{SFM}}{\pi \times \text{D}}$$ SFM is the speed of the cutting edge measured at the tool's circumference, and the 12 converts feet to inches so it matches the tool diameter \(D\). The feed rate follows directly: $$\text{Feed} = \text{RPM} \times \text{Chip Load} \times \text{Number of Flutes}$$ Each flute removes one chip per revolution, so feed scales with both flute count and spindle speed.
Worked Example
Suppose you cut aluminum with a 0.5 inch, 2-flute end mill at 100 SFM with a 0.002 inch chip load. $$\text{RPM} = \frac{12 \times 100}{\pi \times 0.5} = \frac{1200}{1.5708} \approx 763.94 \text{ RPM}$$ $$\text{Feed} = 763.94 \times 0.002 \times 2 \approx 3.056 \text{ IPM}$$ So program roughly 764 RPM and a 3.06 IPM feed.
FAQ
What is SFM? Surface feet per minute is how fast the cutting edge travels. It is material-dependent and listed in tooling charts.

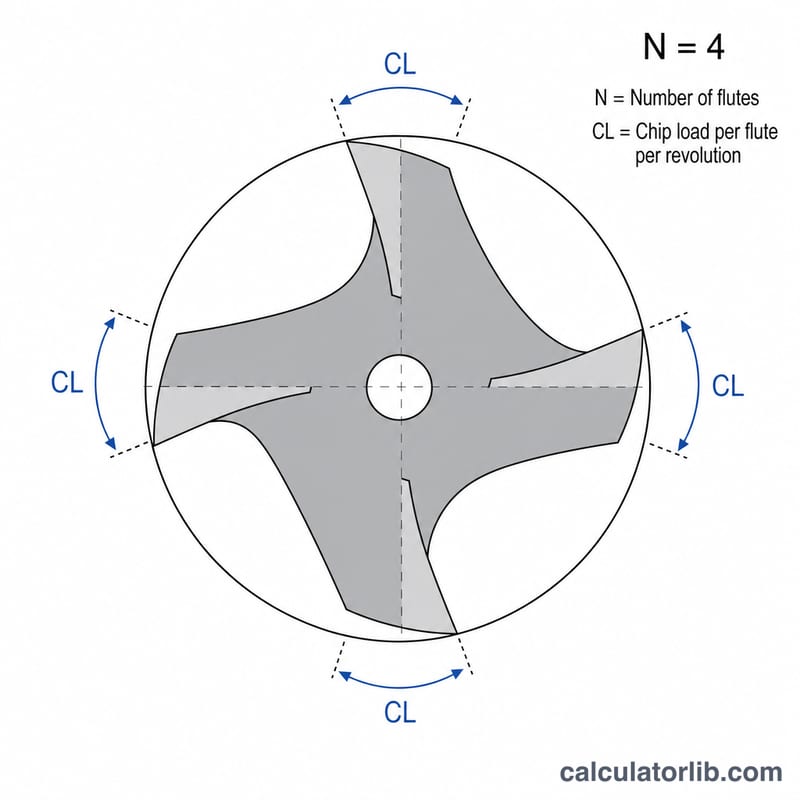

What is chip load? Chip load is the thickness of material removed by each tooth per revolution. Too low causes rubbing and heat; too high overloads the tool.
Does this work in metric? This calculator uses imperial units (SFM, inches). For metric, convert surface speed (m/min) and diameter (mm) using the corresponding metric formula \(\text{RPM} = \frac{1000 \times V_c}{\pi \times D}\).
