Video Frame Size Calculator

Video Frame Size Calculator

Growing AI Skill PRO

Enter Calculation

Formula

Frame Size (bytes)=Bitrate (Mbps)×1068×Frame Rate (fps)\text{Frame Size (bytes)} = \frac{\text{Bitrate (Mbps)} \times 10^{6}}{8 \times \text{Frame Rate (fps)}}

Example

Frame Size (bytes)=8×1068×30≈33,333.33\text{Frame Size (bytes)} = \frac{8 \times 10^{6}}{8 \times 30} \approx 33{,}333.33
Show calculation steps (1)
  1. Total File Size (MB)

    File Size (MB)=Bitrate (Mbps)×106×Duration (s)8×10242\text{File Size (MB)} = \frac{\text{Bitrate (Mbps)} \times 10^{6} \times \text{Duration (s)}}{8 \times 1024^{2}}

    Total bits = bitrate (bps) times duration; converted to bytes and to MB (divide by 1024 squared).

Usage stats

Advertisement

Results

Average Frame Size
33,333.33
bytes per frame
Frame size 32.552 KB
Bitrate 8,000,000 bits/s
Total file size 57.22 MB

Report an error on this page

What is the Video Frame Size Calculator?

This tool estimates the average size of a single video frame and the total file size of a clip from three inputs: video bitrate, frame rate (fps), and duration. It is useful for video editors, streamers, and developers planning storage, bandwidth, or encoding budgets. The calculation is codec-agnostic — it gives the mean bytes per frame assuming bits are spread evenly across frames.

How to use it

Enter the bitrate in megabits per second (Mbps), the frame rate in frames per second, and the clip duration in seconds. The calculator converts the bitrate to bits per second, divides by the frame rate to get bits per frame, then divides by 8 to convert to bytes. Total file size uses bitrate × duration.

The formula explained

Bitrate tells you how many bits the video uses each second. Dividing that by the frame rate gives the bits allocated to one frame on average. Since 1 byte = 8 bits, dividing by 8 converts to bytes:

$$\text{frame\_bytes} = \frac{\text{bitrate\_bps} / \text{fps}}{8}$$

For the whole file, \(\text{file\_bytes} = \dfrac{\text{bitrate\_bps} \times \text{duration}}{8}\). Note that real codecs (H.264, H.265) vary frame sizes greatly — keyframes are large, predicted frames are small — so this is an average, not an exact per-frame value.

Advertisement

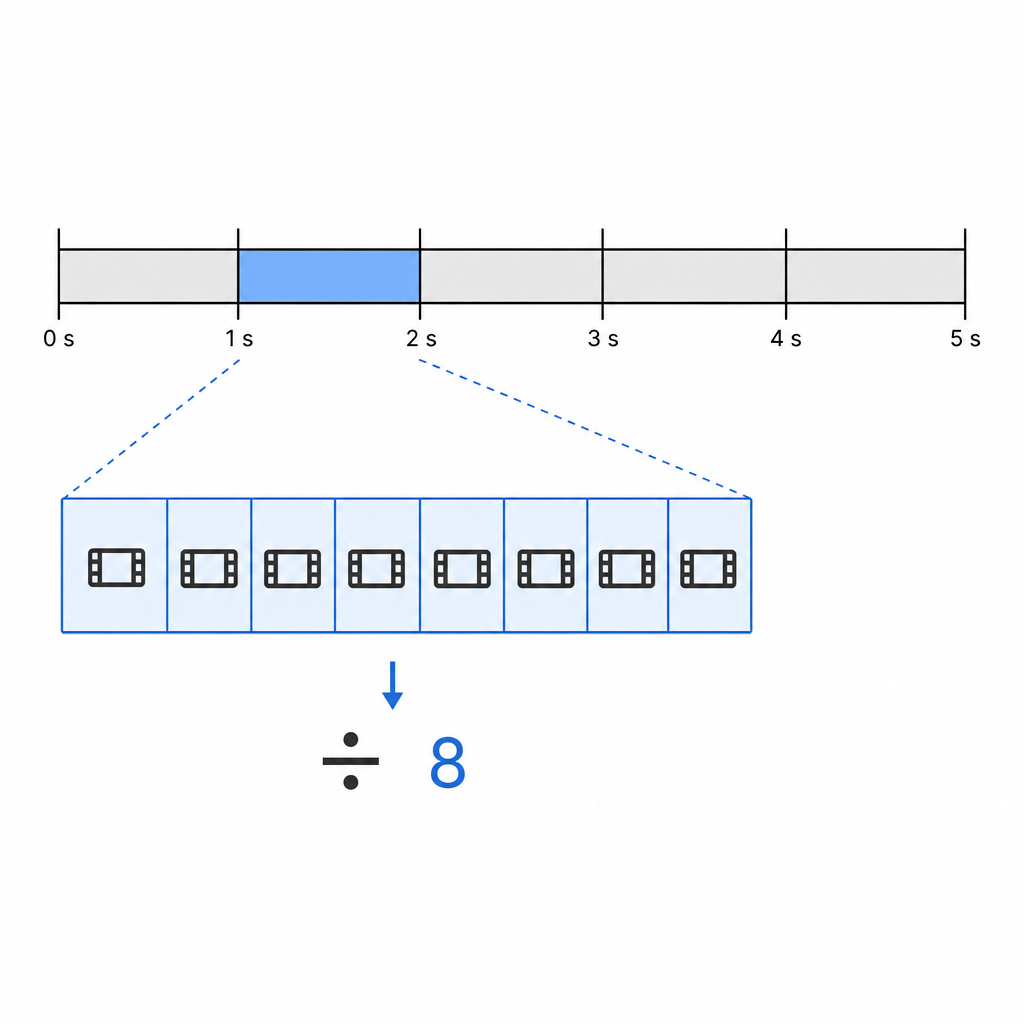

Diagram showing one second of bitrate divided among video frames and converted to bytes
Bitrate per second is divided by the frame rate and by 8 to get the average bytes per frame.

Worked example

A clip encoded at 8 Mbps and 30 fps: bitrate = 8,000,000 bits/s. Bits per frame = \(8{,}000{,}000 / 30 = 266{,}666.67\). Divide by 8 → about 33,333 bytes (~32.6 KB) per frame. Over 60 seconds the file is \((8{,}000{,}000 \times 60) / 8 = 60{,}000{,}000\) bytes ≈ 57.2 MB.

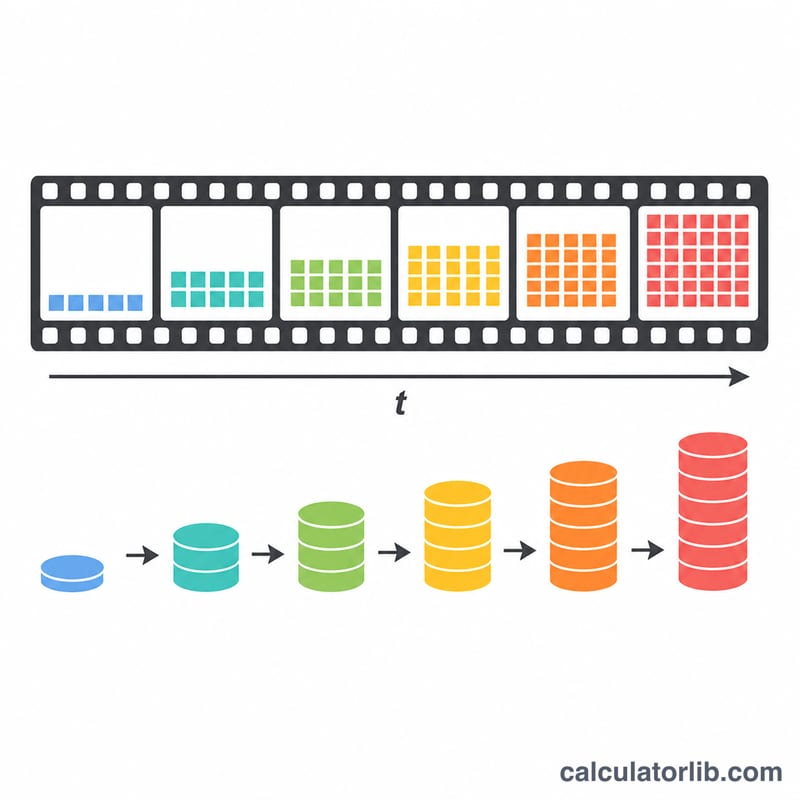

Film strip frames each carrying equal data blocks accumulating into total file size
Multiplying per-frame bytes by total frames gives the clip's file size.

Frame Size and File Size Across Common Scenarios

The average frame size is the bitrate in bytes per second divided by the frame rate. Frame size is shown in KB (1 KB = 1,024 bytes), and file sizes use binary units (1 MB = 1,048,576 bytes, 1 GB = 1,073,741,824 bytes). These figures assume a constant bitrate and cover video only, with no audio or container overhead.

Scenario Bitrate Bytes per second Avg. frame size 60 s file 1 hour file
720p30 5 Mbps 625,000 20.35 KB 35.76 MB 2.10 GB
1080p30 8 Mbps 1,000,000 32.55 KB 57.22 MB 3.35 GB
1080p60 12 Mbps 1,500,000 24.41 KB 85.83 MB 5.03 GB
4K30 35 Mbps 4,375,000 142.41 KB 250.34 MB 14.67 GB
4K60 53 Mbps 6,625,000 107.83 KB 379.09 MB 22.21 GB

Example: for 1080p30 at 8 Mbps, \(\frac{8 \times 10^{6}}{8 \times 30} = \) 33,333 bytes per frame on average (about 32.55 KB).

Note that 1080p60 at 12 Mbps has smaller average frames than 1080p30 at 8 Mbps. Doubling the frame rate spreads the bitrate over twice as many frames, and the bitrate only rises by 50%. Real encoders do not give every frame the same size: keyframes (I-frames) are much larger than predicted frames (P/B-frames), so these values are averages.

Bitrate and Data Size Unit Conversions

Unit relationship Value
1 byte 8 bits
1 kbps 1,000 bits per second
1 Mbps 1,000 kbps = 1,000,000 bits per second
1 KB (binary) 1,024 bytes
1 MB (binary) 1,048,576 bytes (1,024 KB)
1 GB (binary) 1,073,741,824 bytes (1,024 MB)
1 MB (decimal, SI) 1,000,000 bytes
1 Mbps in MB/s (decimal) 1 ÷ 8 = 0.125 MB/s

Decimal vs. binary. The SI prefix "mega" means 1,000,000, while 1,048,576 bytes is formally a mebibyte (MiB). Many operating systems and tools label MiB as "MB", and storage manufacturers use decimal units. A file of 1,048,576 bytes is 1 MiB, or about 1.049 decimal MB. This is why the same file can show slightly different sizes in different programs. This page uses the binary convention.

Mbps to MB/s: divide by 8. For example, 8 Mbps = 1 MB/s (decimal) and 50 Mbps = 6.25 MB/s.

kbps to Mbps: divide by 1,000. For example, 128 kbps = 0.128 Mbps, 500 kbps = 0.5 Mbps, 2,500 kbps = 2.5 Mbps and 8,000 kbps = 8 Mbps.

Advertisement

Typical Video Bitrates by Resolution and Frame Rate

The table below lists the SDR upload bitrates that YouTube has published as recommendations. They are a common reference point, not a universal standard. Other platforms, codecs (H.264, HEVC, AV1, VP9) and content types (fast motion, film grain, screen recordings) use different values, and HDR content usually needs higher bitrates. Check the current guidance for your platform, because recommendations change over time.

Resolution 24–30 fps 48–60 fps
720p ~5 Mbps —
1080p ~8 Mbps ~12 Mbps
1440p (2K) ~16 Mbps ~24 Mbps
2160p (4K) ~35–45 Mbps ~53–68 Mbps

Enter any of these bitrates with the matching frame rate and clip length in the calculator to estimate average frame size and storage needs. These are upload (source) recommendations. Platforms usually re-encode your video, and the stream viewers receive is often much lower in bitrate. Cameras and editing codecs may record at far higher bitrates than any of these values.

FAQ

Why are real frames different sizes? Modern codecs use variable bitrate and frame types, so I-frames are much bigger than P/B-frames. This calculator reports the average.

What units does file size use? Megabytes here use the binary definition (1 MB = 1,048,576 bytes).

Can I use kbps? Convert to Mbps first (e.g. 5000 kbps = 5 Mbps).
