What Is the dBm to Watts Calculator?
This tool converts a power level expressed in dBm (decibels relative to one milliwatt) into watts and milliwatts. dBm is a logarithmic unit widely used in radio frequency (RF), microwave, fiber-optic, and audio engineering because it makes large dynamic ranges easy to read and lets you add gains and losses simply. This conversion is universal physics and applies anywhere.
How to Use It
Type the power level in dBm into the input box and submit. The calculator returns the equivalent power in watts and, for convenience, in milliwatts. Positive dBm values represent power above 1 mW; 0 dBm equals exactly 1 mW, and negative values (common in receiver sensitivity figures) represent very small power levels.
The Formula Explained
The defining relationship is:
$$P_{(\text{W})} = 10^{\frac{\text{Power (dBm)} - 30}{10}}$$

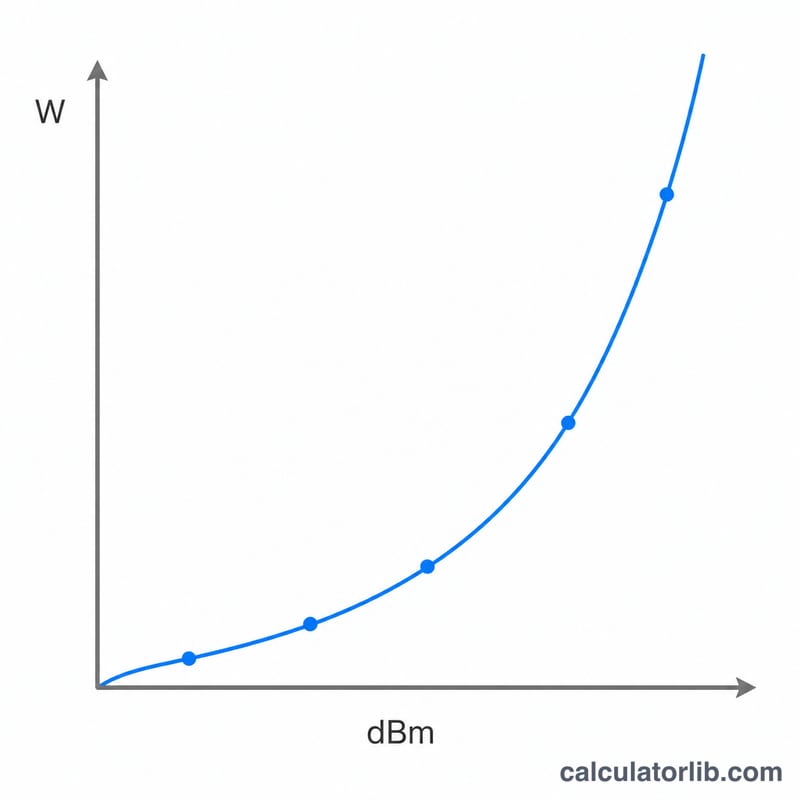

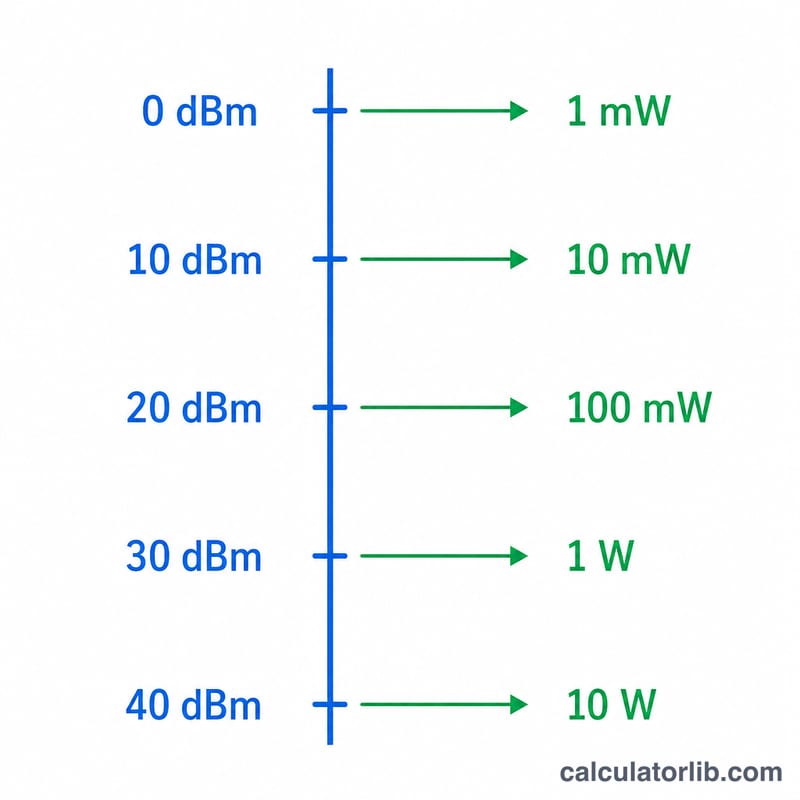

The subtraction of 30 converts the milliwatt reference of dBm into watts (since 1 W = 1000 mW = 30 dB above 1 mW). The inverse is \(\text{dBm} = 10\cdot\log_{10}(P_{\text{watts}}) + 30\). Because the scale is logarithmic, every 10 dB step multiplies power by 10, and every 3 dB step roughly doubles it.
Worked Example
Convert 37 dBm to watts: $$P = 10^{\frac{37 - 30}{10}} = 10^{0.7} \approx 5.0119 \text{ W}.$$ So a cellular base station transmitting at 37 dBm puts out about 5 watts. Likewise, \(30 \text{ dBm} = 10^0 = 1 \text{ W}\) exactly.
FAQ
What is 0 dBm in watts? 0 dBm equals 1 milliwatt, or 0.001 W.
Is dBm the same as dB? No. dB is a ratio between two powers, while dBm is an absolute power referenced to 1 milliwatt.
Can dBm be negative? Yes. Negative dBm simply means power less than 1 mW, common for weak received signals such as \(-90\) dBm.
