What this calculator does

The Wheelchair Ramp Slope Calculator turns a ramp's rise (vertical height) and run (horizontal length) into the three numbers builders and accessibility inspectors care about: the slope ratio (such as 1:12), the grade as a percentage, and the incline angle in degrees. It also reports the recommended ramp run under the United States ADA (Americans with Disabilities Act) guideline. The ADA figures are US-specific; other countries (e.g. UK Part M or AS 1428 in Australia) use similar but not identical limits.

How to use it

Measure the total vertical rise the ramp must climb — typically the height from the lower ground to the top of a porch or threshold — and enter it in inches. Then enter the planned horizontal run (the floor distance the ramp will cover). Press calculate to see the slope ratio, grade percent, angle, and the ADA-recommended run for your rise. If your slope ratio is steeper than 1:12 (grade above 8.33%), lengthen the run.

The formula explained

Slope ratio is run / rise, written as "1 : ratio". A 24 in rise over a 288 in run is \(288/24 = 12\), i.e. 1:12. Grade percent is rise / run × 100, and the incline angle is arctan(rise / run). The ADA recommends at least 1 ft (12 in) of run per inch of rise, so the recommended run equals rise × 12.

$$\text{Slope} = 1 : \dfrac{\text{Run (in)}}{\text{Rise (in)}}$$ $$\text{where}\quad \left\{ \begin{aligned} \text{Grade} &= \dfrac{\text{Rise (in)}}{\text{Run (in)}} \times 100\% \\ \text{Angle} &= \arctan\!\left(\dfrac{\text{Rise (in)}}{\text{Run (in)}}\right) \\ \text{ADA Run} &= 12 \times \text{Rise (in)} \end{aligned} \right.$$
Advertisement

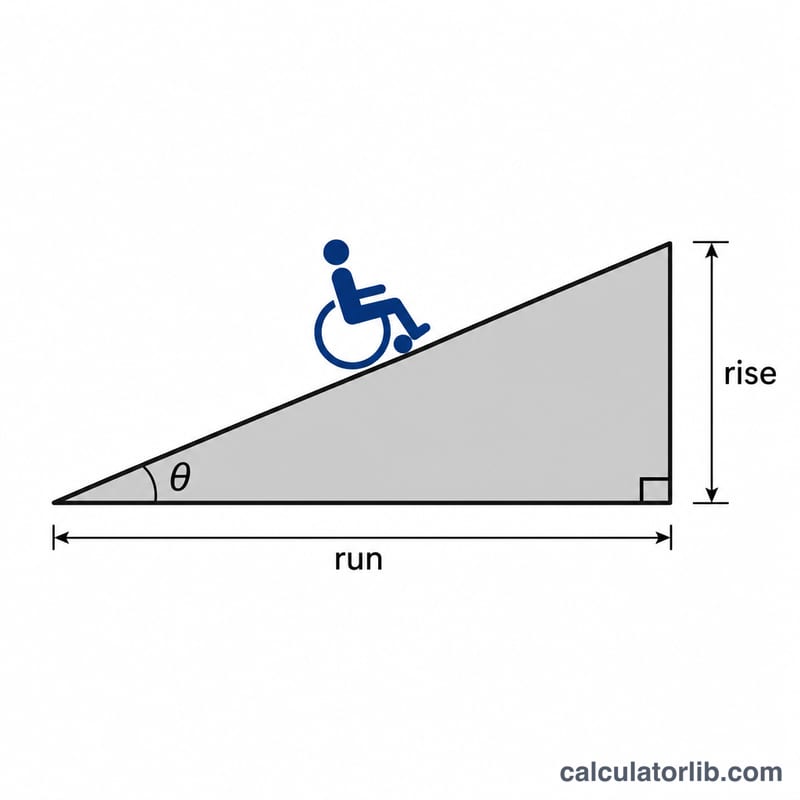

Side view of a ramp showing rise, run and incline angle as a right triangle
Ramp slope is defined by the vertical rise over the horizontal run.

Worked example

A doorway sits 30 inches above grade. To meet the 1:12 rule you need \(30 \times 12 = 360\) inches (30 ft) of ramp run. If you build only 240 inches, the ratio is \(240/30 = 1:8\) and the grade is \(30/240 \times 100 = 12.5\%\) — too steep for ADA and unsafe for self-propelled wheelchair users.

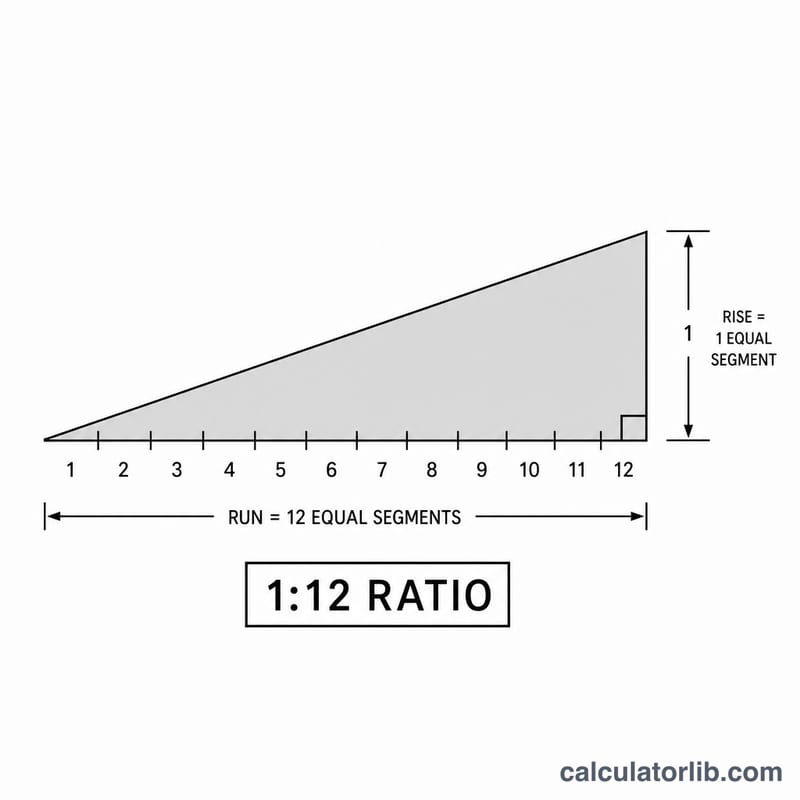

Ramp triangle with run divided into twelve units and rise of one unit
The ADA 1:12 standard: one unit of rise needs twelve units of run.

ADA Ramp Slope Reference Table: Rise vs. Required Run

The US 2010 ADA Standards limit the running slope of a ramp to 1:12. That means 1 inch of rise needs at least 12 inches of run. The table shows the minimum horizontal run at exactly 1:12, which is a grade of 8.33% and an angle of about 4.76°.

Rise (in) Minimum run at 1:12 (in) Minimum run (ft) Grade Angle
2 24 2 8.33% ≈4.76°
6 72 6 8.33% ≈4.76°
12 144 12 8.33% ≈4.76°
18 216 18 8.33% ≈4.76°
24 288 24 8.33% ≈4.76°
30 360 30 8.33% ≈4.76°

The run is the horizontal distance, not the length of the sloped surface. The formula is \(\text{Run} = 12 \times \text{Rise}\).

Common slopes compared

Slope ratio Grade Angle Note
1:20 5% ≈2.86° Not treated as a ramp under the ADA (walking surface)
1:16 6.25% ≈3.58° Gentler than the maximum
1:12 8.33% ≈4.76° ADA maximum running slope
1:10 10% ≈5.71° Steeper than 1:12; only allowed in limited alteration cases
1:8 12.5% ≈7.13° Steeper than 1:12; only allowed in limited alteration cases

ADA Ramp Requirements and Limits

The values below come from the 2010 ADA Standards for Accessible Design (Section 405, United States). They are not universal. Other countries and many local codes use different limits.

  • Running slope: 1:12 maximum (8.33%).
  • Cross slope: 1:48 maximum (about 2.08%).
  • Maximum rise per ramp run: 30 inches. Taller changes in elevation need more than one run, separated by landings.
  • Clear width: at least 36 inches between handrails.
  • Landings: level, at least 60 inches long, and at least as wide as the ramp run leading to them. They are required at the top and bottom, and where the ramp changes direction.
  • Handrails: required on ramp runs with a rise greater than 6 inches. The gripping surface is mounted 34 to 38 inches above the ramp surface.
  • Edge protection: required along the sides of ramp runs and landings, such as a curb or a barrier that prevents wheels from leaving the surface.
  • Slopes of 1:20 or flatter: treated as walking surfaces, not ramps, so the ramp rules for handrails and landings do not apply to them.

Exceptions and local rules

The ADA exceptions for alterations to existing buildings, where space is limited, allow steeper slopes for short rises: 1:10 for a rise of up to 6 inches, and 1:8 for a rise of up to 3 inches. These exceptions apply only in specific cases. New construction generally must meet 1:12. State and local building codes, and residential rules, can differ from the ADA, so check with your local authority before building.

Advertisement

Interpreting Your Result

The calculator gives a slope ratio, a grade percentage and an incline angle from your rise and run:

$$\text{Grade} = \frac{\text{Rise}}{\text{Run}} \times 100\%, \qquad \text{Angle} = \arctan\left(\frac{\text{Rise}}{\text{Run}}\right)$$

  • 1:12 or flatter (grade at or below 8.33%, angle at or below about 4.76°) meets the ADA maximum running slope.
  • Steeper than 1:12 (for example 1:10 or 1:8) does not meet the ADA maximum. Only the limited alteration exceptions could permit it.
  • A longer run means a gentler slope. Doubling the run for the same rise halves the grade, which makes the ramp easier to climb and safer to descend.

Worked example

A 22 in rise with a 200 in run: \(\text{Grade} = \frac{22}{200} \times 100\% = \)11%. The ratio is about 1:9.09 and the angle is \(\arctan(0.11) \approx 6.28°\). That is steeper than 1:12. The required minimum run is \(12 \times 22 = 264\) in, so the ramp needs at least 64 more inches.

Limits of this check

Rises over 30 in need an intermediate landing, so a single long run is not allowed. This result is a geometric check, not a certification. Compliance also depends on width, landings, handrails, edge protection, cross slope, surface and the applicable local code, plus conditions at the actual site.

FAQ

What slope is ADA compliant? A maximum of 1:12, equal to an 8.33% grade or about 4.76°.

Can I use any unit? Yes — the ratio, grade and angle are unitless as long as rise and run use the same unit. The ADA recommended-run row assumes inches.

What about landings? The ADA limits a single ramp run to 30 in of rise before a level landing is required; plan landings into long ramps.
