Enter Calculation

Total measured resistance of the sample, in ohms.
Round wire: A = π × (d/2)². 1 mm² = 0.000001 m².

Formula

R=Resistivity ρ·Length LArea AR = \frac{{{\text{Resistivity }\rho}} \cdot {{\text{Length }L}}}{{{\text{Area }A}}}
Usage stats

Advertisement

Results

Resistivity (ρ)
0.0000000168
Ω·m
Resistivity (μΩ·m = Ω·mm²/m) 0.0168
Conductivity σ (S/m) 59,523,809.52
Conductivity σ (MS/m) 59.5238
Resistance R (Ω) 0.168
Length L (m) 10
Cross-sectional area A (m²) 0.000001

Report an error on this page

What the resistivity calculator does

This calculator finds the electrical resistivity (ρ, "rho") of a material from a real measurement: the resistance of a uniform sample, its length, and its cross-sectional area. Resistivity is an intrinsic property of a material — unlike resistance, it does not depend on the size or shape of the piece, so it is the number you use to compare copper with aluminium, or to identify an unknown conductor. The tool also reports the material's conductivity (σ), which is simply the reciprocal of resistivity.

How to use it

Enter three measured values and read the result:

  • Resistance R — the total resistance of the sample in ohms (Ω), for example from a four-wire (Kelvin) measurement.
  • Length L — the distance the current travels along the sample, in metres.
  • Cross-sectional area A — the area the current flows through, in square metres. For a round wire of diameter d, A = π × (d / 2)2. Remember that 1 mm² equals 0.000001 m².

The main output is resistivity in ohm-metres (Ω·m). The table also gives it in micro-ohm-metres (μΩ·m), which is numerically identical to the common engineering unit Ω·mm²/m, plus the conductivity in siemens per metre.

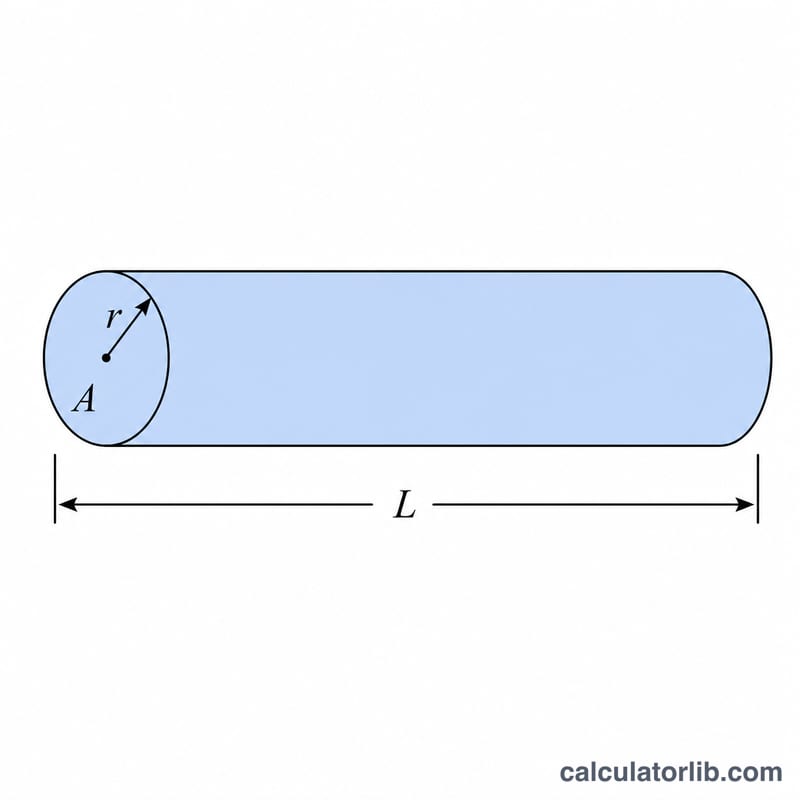

Cylindrical wire showing length L and circular cross-sectional area A
Wire resistance depends on length L, cross-sectional area A, and the material's resistivity ρ.

The formula explained

Resistance, resistivity, length, and area are linked by the definition of resistivity. Starting from the resistance of a uniform conductor and solving for ρ:

$$ R = \rho \frac{L}{A} \quad\Rightarrow\quad \rho = \frac{R \cdot A}{L} $$

Conductivity is the reciprocal of resistivity:

$$ \sigma = \frac{1}{\rho} $$

Here R is in ohms, L in metres and A in square metres, giving ρ in ohm-metres (Ω·m) and σ in siemens per metre (S/m). The formula assumes a uniform sample at a fixed temperature, because resistivity rises with temperature for most metals.

Advertisement

Worked example

A copper wire is 10 m long with a cross-sectional area of 0.000001 m² (1 mm²), and its measured resistance is 0.168 Ω. Substituting into the formula:

$$ \rho = \frac{0.168 \times 0.000001}{10} = 1.68 \times 10^{-8}\ \Omega\cdot\text{m} $$

The conductivity is the reciprocal:

$$ \sigma = \frac{1}{\rho} = 5.95 \times 10^7\ \text{S/m} $$

A resistivity of 1.68 × 10-8 Ω·m (0.0168 μΩ·m) matches the textbook value for annealed copper at 20 °C, confirming the sample is copper.

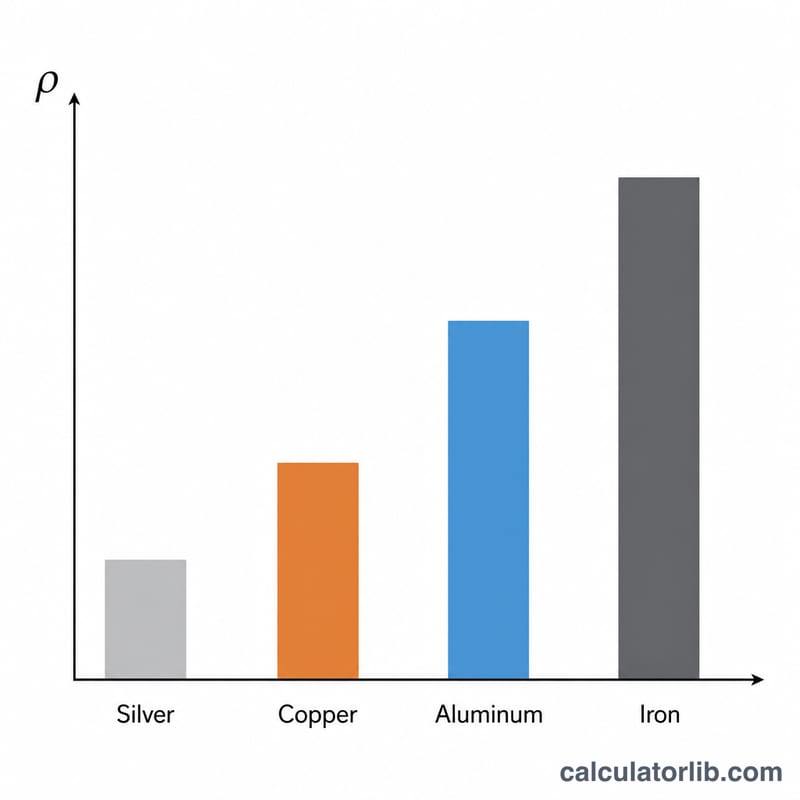

Bar chart comparing resistivity of silver, copper, aluminum and iron
Different materials have different resistivities ρ, changing the wire's resistance.

Interpreting Your Result

This calculator rearranges \(R = \rho L / A\) to give resistivity \(\rho = R A / L\). Use SI units: resistance in ohms (Ω), length in metres (m) and cross-sectional area in square metres (m²). The result is in ohm-metres (Ω·m). A common error is entering area in mm² or cm². Remember that 1 mm² = 10-6 m².

Classification by magnitude

Class Approximate resistivity at room temperature
Conductors below about 10-6 Ω·m
Semiconductors about 10-5 to 103 Ω·m
Insulators above about 108 Ω·m

These boundaries are rules of thumb, not sharp limits. Doping can move a semiconductor across its range, and some alloys sit just above 10-6 Ω·m while still behaving as conductors.

Matching the result to a material

Compare your value with typical figures near 20 °C:

Material Typical ρ (Ω·m)
Silver 1.59 × 10-8
Copper 1.68 × 10-8
Gold 2.44 × 10-8
Aluminium 2.65 × 10-8
Iron about 1 × 10-7
Nichrome (alloy) about 1.1 × 10-6
Germanium (intrinsic) about 0.5
Silicon (intrinsic) about 2.3 × 103
Glass roughly 1010 to 1014

Check the order of magnitude first, then compare the leading digits. A result of 1.7 × 10-8 Ω·m points to copper. A result of 1.7 × 10-7 Ω·m does not match copper and is more likely an iron-based alloy, or an error of a factor of 10 in length or area. Many materials have overlapping ranges, so resistivity alone seldom proves identity. Use it alongside density, appearance or other tests.

Effect of temperature

For metals over moderate temperature ranges, resistivity is approximately linear in temperature:

$$\rho = \rho_0 \left[1 + \alpha (T - T_0)\right]$$

Here \(\rho_0\) is the resistivity at reference temperature \(T_0\) and \(\alpha\) is the temperature coefficient. For copper, \(\alpha \approx 0.0039\ \text{K}^{-1}\) near 20 °C. At 60 °C:

$$\rho = 1.68\times10^{-8}\,[1 + 0.0039 \times (60-20)] = 1.68\times10^{-8} \times 1.156 \approx 1.94\times10^{-8}\ \Omega\cdot\text{m}$$

So a warm wire reads about 16% higher than the tabulated 20 °C value. Always note the temperature at which you measured. Semiconductors behave differently. Their resistivity usually falls as temperature rises because more charge carriers are freed, so \(\alpha\) is negative and the linear formula does not apply.

Impurities and alloying

Impurity atoms, dissolved elements and crystal defects scatter electrons and raise resistivity. This is why high-purity copper conducts better than ordinary copper, and why alloys such as nichrome have much higher resistivity than their parent metals. Cold working and mechanical strain also raise resistivity slightly. If your result is somewhat above the pure-metal value, impurities or alloying are a likely cause. In semiconductors, deliberate doping can change resistivity by many orders of magnitude.

Measurement error sources

  • Contact resistance: probes, clamps and solder joints add resistance in series, which inflates \(R\) and therefore \(\rho\). Four-wire (Kelvin) measurement removes most of this effect.
  • Non-uniform cross-section: a wire that is dented, tapered, stranded or oxidised does not have the area you assumed. Because \(\rho\) is proportional to \(A\), a small diameter error is squared. A 2% error in diameter gives roughly a 4% error in area.
  • Length: measure only the segment between the voltage contacts, and account for coiling or kinks.
  • Self-heating: a large test current warms the sample and raises its resistance during the measurement. Use a small current.
  • Instrument limits: very low resistances (milliohms) and very high ones (megohms and above) need suitable meters. Surface leakage can dominate when testing insulators.
  • Unit slips: mixing mm, cm and m, or mm² and m², is the most common cause of results that are far off by powers of ten.
Advertisement

Frequently asked questions

What is the difference between resistivity and resistance? Resistance (R, in ohms) depends on the size and shape of a specific object, while resistivity (ρ, in ohm-metres) is an intrinsic property of the material itself. A long thin wire and a short fat wire of the same metal have different resistances but identical resistivity.

How do I get the cross-sectional area of a round wire? Use A = π × (d / 2)2, where d is the wire diameter. For example, a 2 mm diameter wire has A = π × (0.001)2 ≈ 0.00000314 m². Convert from mm² to m² by multiplying by 0.000001.

Does temperature affect the result? Yes. Resistivity of most metals increases with temperature, so published reference values are quoted at a specific temperature, usually 20 °C. Measure resistance at a known temperature if you want to compare your result against reference tables.
