Army Body Fat Calculator (US)

Army Body Fat Calculator (US)

Emerging AI Skill PRO

Enter Calculation

Formula

BF%=−26.97−0.12×Weight+1.99×Abdomen\text{BF\%} = -26.97 - 0.12 \times \text{Weight} + 1.99 \times \text{Abdomen}

Example

BF%=−26.97−0.12×180+1.99×36≈23.1\text{BF\%} = -26.97 - 0.12 \times 180 + 1.99 \times 36 \approx 23.1
Usage stats

Advertisement

Results

Estimated Body Fat (ABCP)
23.1
% body fat
Maximum for your age and sex 24%
Army standard Within standard
Age group 28-39
Method One-site tape (abdomen and weight)

Report an error on this page

What it is

This tool estimates body fat with the U.S. Army one-site tape test of the Army Body Composition Program (ABCP). Army Directive 2023-11 introduced the one-site circumference method in June 2023 and made it the only authorized tape method 12 months later. It needs two measurements: the abdominal circumference at the navel and body weight. The result is compared with the maximum body fat allowed for your age and sex. This calculator is specific to the United States Army standard; other services and civilian charts use different methods.

How to use it

Select your sex and enter your age, your weight in pounds (to the nearest pound) and your abdominal circumference in inches. Measure the abdomen at the level of the navel, three times, rounding each reading down to the nearest half-inch, and use the average. The result shows your estimated body fat, the maximum for your age and sex, whether you are within the standard, and the method used. Links made for the former multi-site method still open with that method; you can also choose it in the form.

The formula explained

The one-site equations are printed on the Army body fat worksheets (DA Form 5500 for men and DA Form 5501 for women, June 2023 edition), with weight in pounds and abdomen in inches:

$$\text{BF\%}_{\text{men}} = -26.97 - 0.12 \times \text{Weight} + 1.99 \times \text{Abdomen}$$$$\text{BF\%}_{\text{women}} = -9.15 - 0.015 \times \text{Weight} + 1.27 \times \text{Abdomen}$$

The worksheets also allow reading the same value from the chart in AR 600-9 figure B-1, which lists whole percentages; this calculator shows one decimal, so a result within one point of the limit should be confirmed with the official tape test.

Maximum body fat allowed

AR 600-9 Table B-2, as printed on the same worksheets:

Age Men Women
17-20 20% 30%
21-27 22% 32%
28-39 24% 34%
40 and older 26% 36%
Advertisement

Worked example

A 30-year-old man weighs 180 lb and measures 36 in at the navel: $$\text{BF\%} = -26.97 - 0.12 \times 180 + 1.99 \times 36 = -26.97 - 21.6 + 71.64 = 23.07$$ The maximum for men aged 28-39 is 24%, so he is within the standard. A 25-year-old woman who weighs 150 lb with a 32 in abdomen: \(-9.15 - 2.25 + 40.64 = 29.24\%\), within the 32% maximum for women aged 21-27.

The former multi-site method

Until the one-site test was phased in, AR 600-9 appendix B used several tape sites with height: neck and abdomen for men; neck, waist and hips for women. During the 12-month phase-in, Soldiers who failed the one-site test could still be measured with the multi-site method as a confirmation tape test; since mid-2024 the one-site tape test is the only authorized tape method. The calculator keeps the former equations, labelled as such, for old links and comparison:

$$\text{BF\%} = 86.010 \cdot \log_{10}\!\left(\text{Abdomen} - \text{Neck}\right) - 70.041 \cdot \log_{10}\!\left(\text{Height}\right) + 36.76$$$$\text{BF\%} = 163.205 \cdot \log_{10}\!\left(\text{Waist} + \text{Hip} - \text{Neck}\right) - 97.684 \cdot \log_{10}\!\left(\text{Height}\right) - 78.387$$

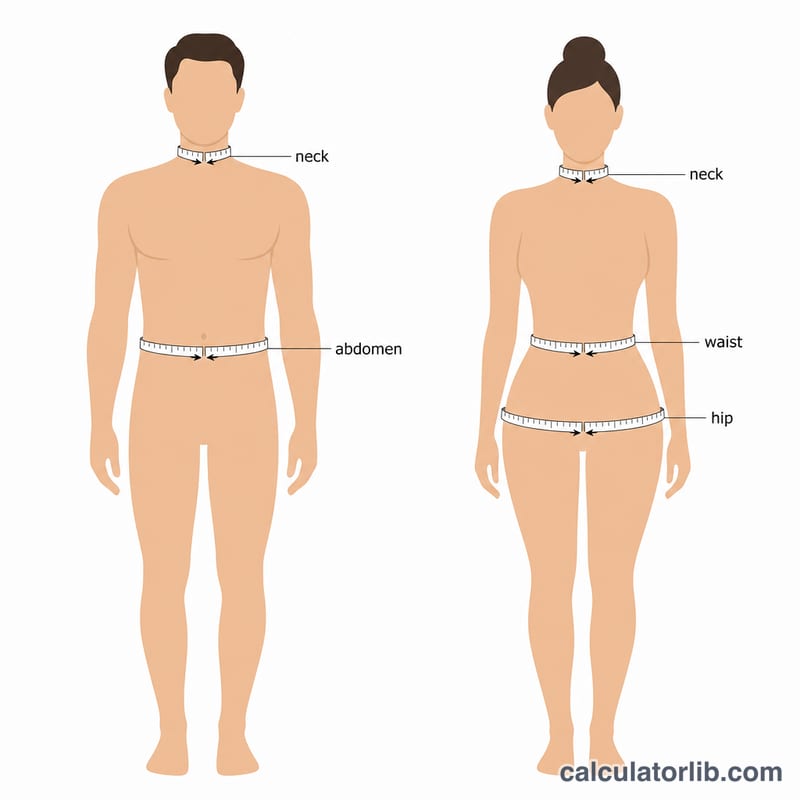

Diagram of a male figure showing neck and abdomen tape measurement sites and a female figure showing neck, waist and hip measurement sites
Tape sites of the former multi-site method: neck and abdomen for men, neck, waist and hip for women.

Definitions & Glossary

Abdomen
The abdominal circumference measured horizontally at the level of the navel (belly button), at the end of a normal, relaxed exhalation. It is the only tape site of the one-site test, for men and women.
Weight
Body weight in pounds, recorded to the nearest pound; the second input of the one-site equations.
One-site tape test
The Army circumference method that uses only the abdomen and body weight. It replaced the multi-site tape method.
Supplemental body fat assessment
A device-based body fat assessment that a Soldier who fails the tape test may request where it is reasonably available.
ABCP
The Army Body Composition Program, the program a Soldier is enrolled in after exceeding the body-fat standard. It provides assessment, counseling and follow-up until the Soldier returns to within standards.
AR 600-9
Army Regulation 600-9, the regulation that establishes the Army Body Composition Program, the screening table, the tape procedure and the maximum allowable body-fat percentages.
Advertisement

FAQ

Is this an exact measurement? No. A tape equation estimates body fat; a 2024 study of the one-site equation found it accurate on average for a group but with wide individual errors compared with laboratory methods.

What units do I use? Pounds for weight and inches for the abdomen. Convert kilograms by multiplying by 2.2046 and centimeters by dividing by 2.54.

Does the Army still use the multi-site test? No. It was only allowed as a confirmation test during the first year of the one-site method; since mid-2024 the one-site tape test is the only authorized tape method.

What happens if I am over the maximum? A Soldier who fails the tape test is flagged and may request a supplemental body fat assessment where available; otherwise the Soldier is enrolled in the ABCP.

Sources

  • Secretary of the Army, Army Directive 2023-11, Army Body Fat Assessment for the Army Body Composition Program (armypubs.army.mil).
  • DA Form 5500 and DA Form 5501, Body Fat Content Worksheet (Male / Female), June 2023 (armypubs.army.mil).
  • Florez CM et al. Body composition estimation from mobile phone three-dimensional imaging: evaluation of the USA army one-site method. Br J Nutr 2024;132(9):1143-1151. PMID 39411840.

Sources & References

Checked against these sources on . Not reviewed by a clinician. For general information only, not medical advice or a diagnosis. Talk to a doctor about any health concern.
