What is the U.S. Navy Body Fat Calculator?
The U.S. Navy body fat method estimates body fat percentage from simple tape-measure circumference measurements rather than calipers or lab equipment. It was developed by the Naval Health Research Center and is widely used for fitness screening. All measurements are entered in inches.
How to use it

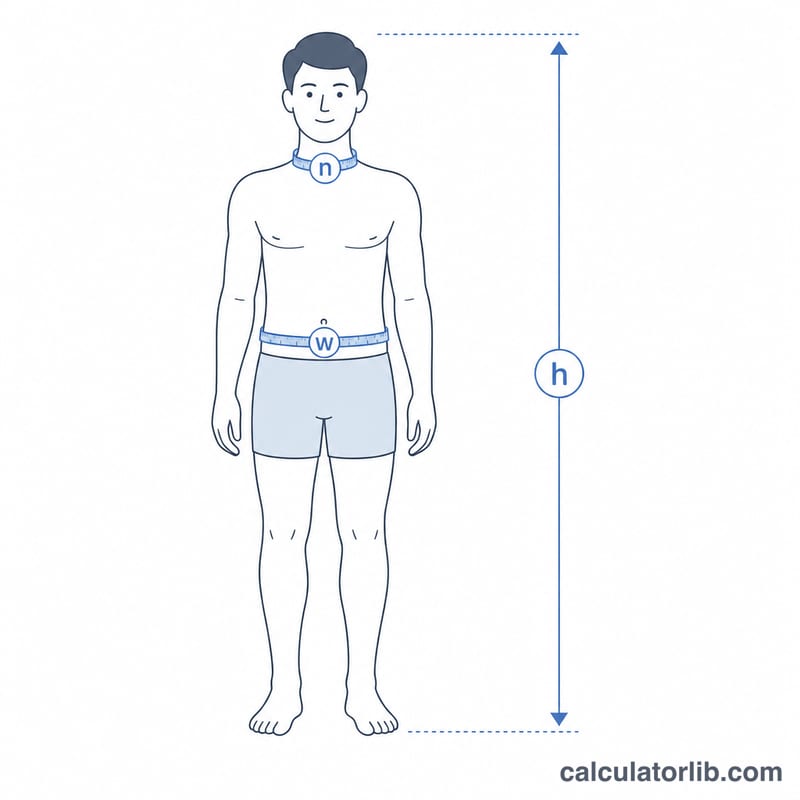

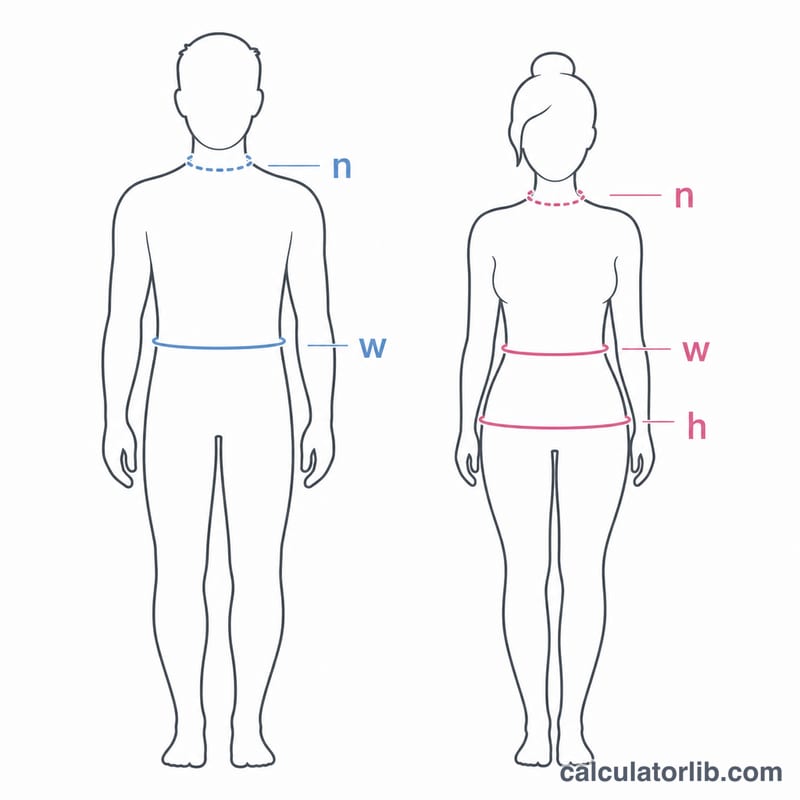

Select your gender, then enter your height, neck and waist measurements in inches. Women also enter a hip measurement. Measure the neck just below the larynx, the waist at the navel for men (or the narrowest point for women), and the hip at the widest point. The calculator returns an estimated body fat percentage and a fitness category.
The formula explained
For men, $$\text{BF}\% = 86.010 \cdot \log_{10}\!\left(\text{waist} - \text{neck}\right) - 70.041 \cdot \log_{10}\!\left(\text{height}\right) + 36.76$$ For women, $$\text{BF}\% = 163.205 \cdot \log_{10}\!\left(\text{waist} + \text{hip} - \text{neck}\right) - 97.684 \cdot \log_{10}\!\left(\text{height}\right) - 78.387$$ The logarithms are base-10 and every length is in inches.
Worked example
A man who is 70 in tall with a 15 in neck and 34 in waist: \(\text{waist} - \text{neck} = 19\). $$\text{BF}\% = 86.010 \cdot \log_{10}(19) - 70.041 \cdot \log_{10}(70) + 36.76 \approx 86.010 \cdot 1.27875 - 70.041 \cdot 1.84510 + 36.76 \approx 17.49\%$$
Body Fat Percentage Categories (ACE Standards)
The table below uses the category ranges published by the American Council on Exercise (ACE). These are general fitness classifications for adults, not diagnostic cut-offs.
| Category | Women (% body fat) | Men (% body fat) |
|---|---|---|
| Essential fat | 10–13% | 2–5% |
| Athletes | 14–20% | 6–13% |
| Fitness | 21–24% | 14–17% |
| Average | 25–31% | 18–24% |
| Obese | 32%+ | 25%+ |
Source: American Council on Exercise (ACE). Note that the U.S. Navy and Department of Defense set their own maximum allowable body fat standards, which differ by age and sex and are not the same as the ACE categories above. Check the current official policy if you need to know a military standard.
Example Results Across Different Measurements
All measurements are in inches. For men the calculator uses \(\text{BF}\% = 86.010\log_{10}(\text{waist}-\text{neck}) - 70.041\log_{10}(\text{height}) + 36.76\). For women the U.S. Navy method also uses hip circumference: \(\text{BF}\% = 163.205\log_{10}(\text{waist}+\text{hip}-\text{neck}) - 97.684\log_{10}(\text{height}) - 78.387\).
| Sex | Height (in) | Neck (in) | Waist (in) | Hip (in) | Body fat % |
|---|---|---|---|---|---|
| Man | 70 | 15 | 34 | n/a | 17.5% |
| Man | 72 | 16 | 38 | n/a | 22.1% |
| Man | 68 | 14.5 | 30 | n/a | 10.8% |
| Woman | 65 | 13 | 28 | 38 | 25.9% |
| Woman | 64 | 12.5 | 32 | 40 | 34.8% |
Worked check (first row): \(86.010\log_{10}(34-15) - 70.041\log_{10}(70) + 36.76 = 86.010(1.27875) - 70.041(1.84510) + 36.76 \approx 109.986 - 129.233 + 36.76 = 17.51\).
Worked check (woman, 65 in): \(163.205\log_{10}(28+38-13) - 97.684\log_{10}(65) - 78.387 = 163.205(1.72428) - 97.684(1.81291) - 78.387 \approx 281.410 - 177.093 - 78.387 = 25.93\).
Effect of 1 inch of waist: because the waist enters through a logarithm, the effect depends on your starting size. For the first man (waist − neck = 19 in), adding 1 inch to the waist raises the estimate by about 1.9 percentage points. For the first woman (waist + hip − neck = 53 in), 1 extra inch of waist adds about 1.3 points. Measurement error of an inch or two can therefore shift the result noticeably.
Measurement Terms and Definitions
- Height
- Standing height without shoes, measured in inches (feet × 12 + remaining inches).
- Neck circumference
- The distance around the neck measured just below the larynx (Adam's apple), with the tape sloping slightly downward at the front.
- Waist circumference
- For men, measured at the navel. For women, measured at the narrowest point of the torso (or at the navel if there is no clear narrowing).
- Hip circumference
- Used for women only. Measured around the widest point of the hips and buttocks, keeping the tape level.
- Body fat percentage
- The share of total body weight that is fat tissue: fat mass divided by total body mass, times 100.
- Essential fat
- The minimum fat needed for basic physiological function, including organs, nerves and hormone regulation. It is higher in women than in men, and going below it is unhealthy.
- log10
- The base-10 logarithm: the power to which 10 must be raised to get a number. For example, \(\log_{10}(100) = 2\) and \(\log_{10}(19) \approx 1.279\).
Measuring tips: Use a flexible, non-stretch tape. Keep it snug against the skin without compressing it, and keep it level all the way around. Stand relaxed and upright, breathe normally and measure at the end of a normal exhale, without sucking in your stomach. Take each measurement two or three times and average them. The Navy method is an estimate and can differ from DEXA or other lab methods.
FAQ
Is this accurate? It is a reasonable estimate (\(\pm 3\text{–}4\%\)) but not as precise as DEXA or hydrostatic weighing.
Why inches? The original Navy regression was calibrated for inches; using centimeters requires a different constant set.
Do I need the hip measurement? Only women use the hip term; for men it is ignored.
