Enter Calculation

Results

Vertical Exaggeration
10×
vertical features appear this many times taller
Horizontal scale 1 : 24,000
Vertical scale 1 : 2,400
Exaggeration factor 10 : 1

Formula

VE=Horizontal ScaleVertical Scale\text{VE} = \frac{\text{Horizontal Scale}}{\text{Vertical Scale}}

Example

VE=240002400=10\text{VE} = \frac{24000}{2400} = 10
Usage stats

Advertisement

Report an error on this page

What Is Vertical Exaggeration?

Vertical exaggeration (VE) describes how much the vertical dimension of a topographic profile or geologic cross-section is stretched compared with the horizontal dimension. When the vertical scale is larger (more detailed) than the horizontal scale, hills and valleys appear taller and steeper than they really are. VE is essential in cartography, geology, surveying, and earth science because it tells you how to interpret the shape of a profile honestly.

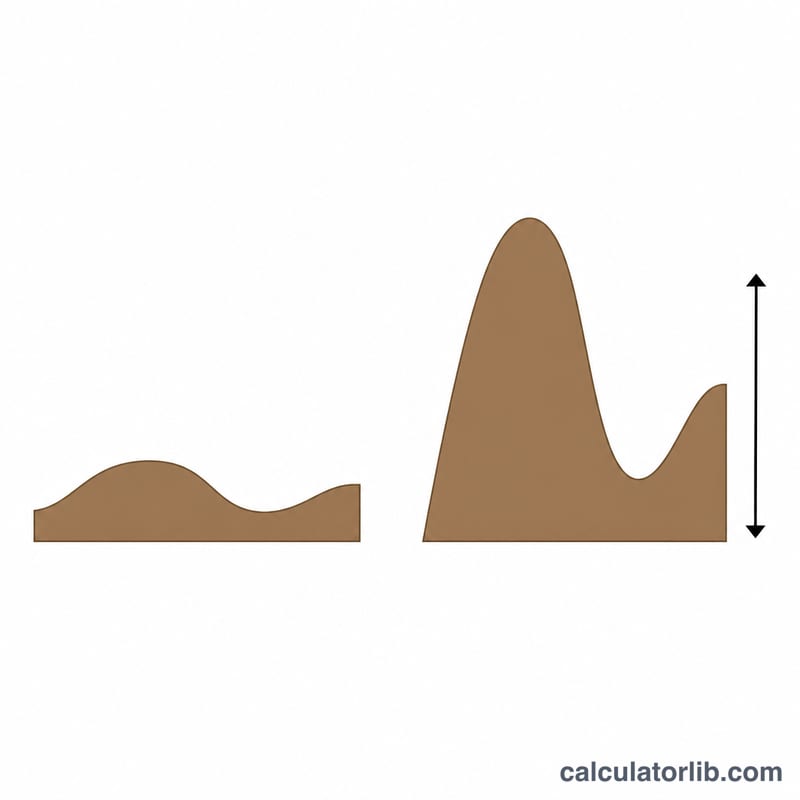

Two topographic profiles of the same terrain, one with true scale and one vertically exaggerated
Vertical exaggeration stretches the vertical scale, making slopes and relief appear steeper than reality.

How to Use This Calculator

Enter the denominator of your horizontal scale and your vertical scale. For example, a map drawn at 1:24,000 horizontally and a profile plotted at 1:2,400 vertically gives a horizontal scale of 24000 and a vertical scale of 2400. The calculator divides the two to return the exaggeration factor. Both values must be expressed as the "1 : X" denominator in the same units.

The Formula Explained

The formula is simply $$\text{VE} = \frac{\text{Horizontal Scale}}{\text{Vertical Scale}}$$ Because both scales share the same units, the result is a unitless multiplier. A VE of 1 means there is no exaggeration (a true-shape profile). A VE greater than 1 means the relief is amplified; a VE less than 1 (rare) means it is compressed.

Advertisement

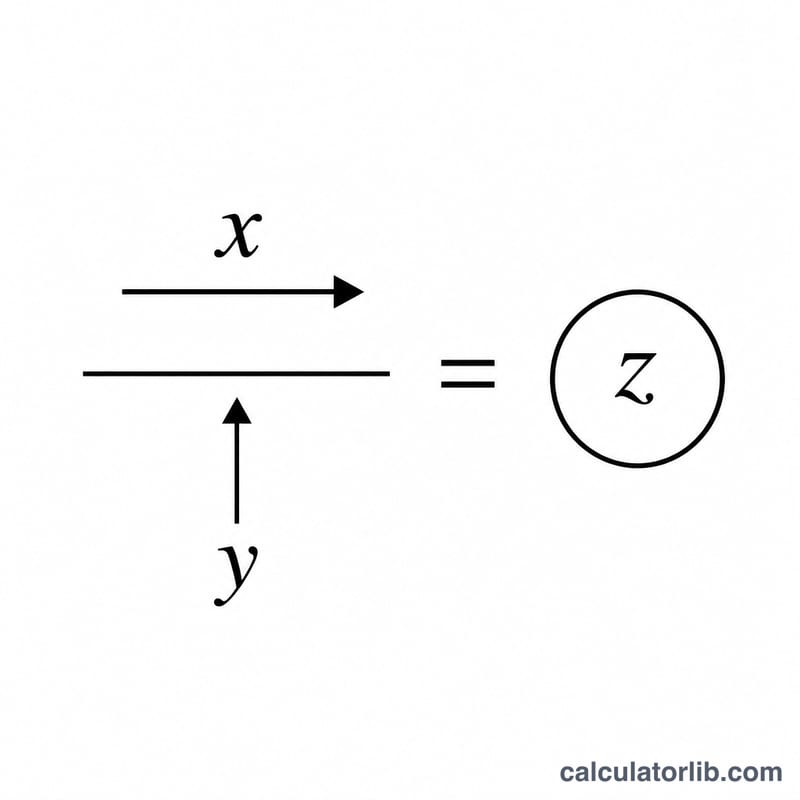

Formula diagram dividing horizontal scale by vertical scale
VE equals the horizontal scale divided by the vertical scale.

Worked Example

Suppose a profile has a horizontal scale of 1:50,000 and a vertical scale of 1:5,000. $$\text{VE} = 50000 \div 5000 = 10$$ The terrain in this profile appears ten times taller than it is in reality, so a 100 m hill is drawn as if it were 1,000 m relative to the horizontal distances.

Interpreting Your Vertical Exaggeration Result

Vertical exaggeration (VE) compares how much a profile is stretched vertically relative to horizontally. When both scales are written as representative fractions (1:X) in the same units, \(\text{VE} = \frac{X_{h}}{X_{v}}\), where \(X_h\) is the horizontal denominator and \(X_v\) is the vertical denominator. For example, a horizontal scale of 1:24,000 and a vertical scale of 1:4,800 give \(\text{VE} = \frac{24000}{4800} = 5\).

Typical VE bands

VE Meaning Typical use
VE = 1 True scale, with no distortion Reference or unexaggerated profiles
About 1–2 Minimal distortion Steep or high-relief terrain where shapes should look natural
About 2–5 Moderate exaggeration Common for geologic cross-sections
5–10 or more Strong exaggeration Subtle relief, gentle terrain, floodplains, coastal plains
Below 1 Vertical compression: relief appears flatter than reality Rare; occasionally for very steep terrain

Slopes look steeper than they are

When VE is greater than 1, every slope on the profile appears steeper than the real slope. The relationship is:

$$\tan(\theta_{\text{apparent}}) = \text{VE} \times \tan(\theta_{\text{true}})$$

For example, a true slope of 10° has \(\tan 10^\circ \approx 0.1763\). At VE = 5, \(\tan(\theta_{\text{apparent}}) \approx 5 \times 0.1763 = 0.8816\), so the slope is drawn at about 41.4°. You therefore cannot measure a true slope or dip angle directly with a protractor on an exaggerated profile. Instead, compute the true angle from the measured rise and run, or divide the apparent tangent by VE.

Practical cautions

  • Always label the VE (for example, "VE = 5×") on the figure, along with both scales or a scale bar.
  • High VE distorts true dip and slope. Beds, faults and landforms can look much steeper than they are, which can mislead geologic interpretation.
  • Use the lowest VE that still makes the features of interest visible.
  • A VE below 1 compresses relief, so hills and valleys look gentler than they actually are.
Advertisement

Key Terms

Vertical exaggeration (VE)
The ratio of the horizontal scale denominator to the vertical scale denominator. It shows how much a profile's vertical dimension is stretched relative to its horizontal dimension. It has no units.
Horizontal scale
The ratio between a distance on the profile and the corresponding real horizontal distance, for example 1:24,000.
Vertical scale
The ratio between a height on the profile and the corresponding real elevation difference, for example 1:4,800.
Representative fraction (1:X)
A unitless scale written as 1:X, where X is the denominator. One unit on the drawing represents X of the same unit on the ground. A smaller denominator means a larger scale.
Topographic profile
A graph of ground elevation along a line, usually taken from a topographic map, showing how the land surface rises and falls with distance.
Geologic cross-section
A vertical slice through the Earth that shows rock units, contacts, faults and structures beneath the surface, often built on a topographic profile.
Relief
The difference in elevation between the highest and lowest points in an area or along a profile.
True-scale (unexaggerated) profile
A profile drawn with equal horizontal and vertical scales, so VE = 1 and slopes and angles are shown as they really are.

Note: Both scales must use the same units. If the horizontal scale is in meters and the vertical scale is in feet, convert one of them first. Otherwise the VE will be wrong.

FAQ

Is a high vertical exaggeration bad? Not necessarily. Exaggeration helps reveal subtle relief, but it makes slopes look steeper, so always state the VE on your figure.

What does VE = 1 mean? The vertical and horizontal scales are equal, so the profile shows true, undistorted shapes.

Can VE be less than 1? Yes, if the horizontal scale is more detailed than the vertical scale, but this is uncommon in practice.
