What this converter does

This tool converts a point described in 3D spherical coordinates into standard Cartesian coordinates (x, y, z). You supply the radial distance r, the azimuthal angle theta (measured in the x-y plane), and the polar angle phi (measured down from the positive z axis), and it returns the equivalent rectangular position.

Angle convention used

Conventions for naming the two angles differ between textbooks. This calculator uses the mapping where theta is the azimuth (rotation in the x-y plane) and phi is the polar angle (tilt from the +z axis). If your source swaps these names, simply swap the values you enter so the math lines up.

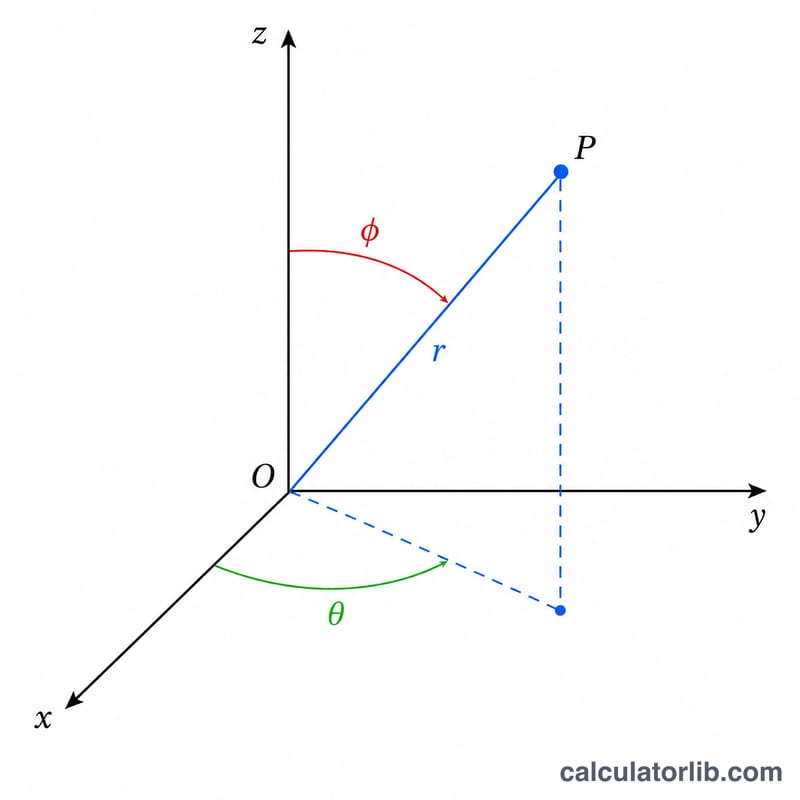

3D diagram showing a point in spherical coordinates with radius r, polar angle phi from the z-axis, and azimuth angle theta in the xy-plane
Spherical coordinates: r is the radius, phi the polar angle from the z-axis, and theta the azimuth in the xy-plane.

How to use it

Enter r, theta and phi, then pick whether your angles are in Degrees (default) or Radians. The converter scales the angles to radians internally (multiply by \(\frac{\pi}{180}\) for degrees) before applying the trig functions, then displays x, y and z to about ten significant digits.

The formula explained

The point lies on a sphere of radius \(r\). The polar angle \(\phi\) sets how far the point tilts from the vertical axis: \(z = r\cdot\cos\phi\). The horizontal projection has length \(r\cdot\sin\phi\), and the azimuth \(\theta\) splits that projection between the x and y axes, giving

$$x = r\,\sin\phi\,\cos\theta \quad\text{and}\quad y = r\,\sin\phi\,\sin\theta$$
Advertisement

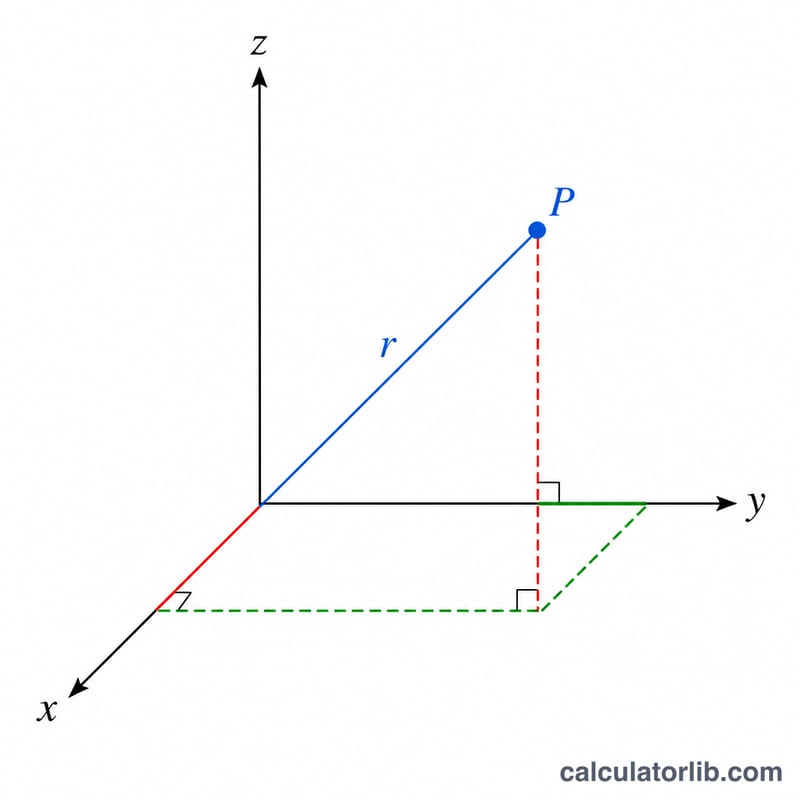

Diagram showing how a spherical point projects to x, y, z components on the Cartesian axes
Each Cartesian component is the radius scaled by sine and cosine of the angles.

Worked example

Take r = 5, theta = 60 degrees, phi = 30 degrees. Then \(\sin\phi = 0.5\), \(\cos\phi = 0.8660254\), \(\cos\theta = 0.5\), \(\sin\theta = 0.8660254\). So

$$x = 5 \times 0.5 \times 0.5 = 1.25$$$$y = 5 \times 0.5 \times 0.8660254 = 2.16506351$$$$z = 5 \times 0.8660254 = 4.33012702$$

The Cartesian point is (1.25, 2.16506351, 4.33012702).

Common Angle Reference Values and Resulting Points

This calculator uses theta (θ) as the azimuth, measured in the x-y plane from the +x axis, and phi (φ) as the polar angle, measured down from the +z axis. The formulas are \(x = r\sin\phi\cos\theta\), \(y = r\sin\phi\sin\theta\) and \(z = r\cos\phi\). The table below uses r = 1.

θ (azimuth) φ (polar) (x, y, z) Location
any (e.g. 0°) 0° (0, 0, 1) +z axis (north pole)
0° 90° (1, 0, 0) +x axis
90° 90° (0, 1, 0) +y axis
180° 90° (-1, 0, 0) -x axis
270° 90° (0, -1, 0) -y axis
any (e.g. 0°) 180° (0, 0, -1) -z axis (south pole)

When φ is 0° or 180°, the point lies on the z axis, so θ has no effect on the result.

Sine and cosine of 30°, 45° and 60°

Angle sin cos
30° 1/2 = 0.5 √3/2 ≈ 0.8660
45° √2/2 ≈ 0.7071 √2/2 ≈ 0.7071
60° √3/2 ≈ 0.8660 1/2 = 0.5

Scaling with r: x, y and z are all proportional to r. Doubling r doubles every coordinate, so the table above gives the point for any radius if you multiply each entry by r. For example, with r = 3 and φ = 90°, θ = 0° gives (3, 0, 0).

Advertisement

Degrees and Radians Conversion Table

Conversion rules:

  • radians = degrees × π/180
  • degrees = radians × 180/π

Use this table when you set the calculator to radians. A full turn is 360° = 2π rad, and 1 rad ≈ 57.2958°.

Degrees Radians (exact) Radians (decimal)
0° 0 0.0000
30° π/6 0.5236
45° π/4 0.7854
60° π/3 1.0472
90° π/2 1.5708
120° 2π/3 2.0944
135° 3π/4 2.3562
150° 5π/6 2.6180
180° π 3.1416
270° 3π/2 4.7124
360° 2π 6.2832

Example: \(60^\circ \times \frac{\pi}{180} = \frac{\pi}{3} \approx 1.0472\) rad.

Comparing Different Angle Conventions (Physics vs. Math)

Textbooks disagree on which Greek letter is which angle. If you enter the right numbers in the wrong fields, you get a different point. The table compares r = 5 with the angles 60° and 30°, entered both ways in this calculator (θ = azimuth, φ = polar).

Entry r θ (azimuth) φ (polar) x y z
A: θ = 60°, φ = 30° 5 60° 30° 1.25 2.1651 4.3301
B: values swapped, θ = 30°, φ = 60° 5 30° 60° 3.75 2.1651 2.5

Worked substitution for A: \(x = 5\sin 30^\circ\cos 60^\circ = 5(0.5)(0.5) = 1.25\), \(y = 5\sin 30^\circ\sin 60^\circ = 5(0.5)(0.8660) \approx 2.1651\), \(z = 5\cos 30^\circ \approx 4.3301\).

Worked substitution for B: \(x = 5\sin 60^\circ\cos 30^\circ = 5(0.75) = 3.75\), \(y = 5\sin 60^\circ\sin 30^\circ = 5(0.8660)(0.5) \approx 2.1651\), \(z = 5\cos 60^\circ = 2.5\).

Check: both points are 5 from the origin, since \(1.25^2 + 2.1651^2 + 4.3301^2 = 25\) and \(3.75^2 + 2.1651^2 + 2.5^2 = 25\). Only the direction differs.

Conventions to watch for

  • This tool: θ = azimuth (in the x-y plane), φ = polar angle from +z.
  • ISO 80000-2 / most physics texts: θ = polar angle from +z, φ = azimuth. A point given as (r = 5, θ = 30°, φ = 60°) in that convention corresponds to entry A here (azimuth 60°, polar 30°). Swap the two angle values before entering them.
  • Many math texts use the same convention as this tool, but some use the physics one, so always check the definition in your source.
  • Geographic latitude: latitude is measured up from the equator rather than down from the pole, so the polar angle is φ = 90° - latitude. This gives \(z = r\sin(\text{latitude})\) and \(x = r\cos(\text{latitude})\cos(\text{longitude})\), with longitude playing the role of θ.

FAQ

What if r = 0? The point is at the origin (0, 0, 0) regardless of the angles.

Can angles be negative or larger than 360? Yes. Trigonometric functions are periodic, so any real angle is valid and handled correctly.

What does phi = 0 mean? The point sits on the positive z axis: \(x = y = 0\) and \(z = r\). A phi of 180 degrees puts it on the negative z axis (\(z = -r\)).
