Conical frustum
Conical frustumRadii 3 and 5, height 8: volume 410.5.R = 5r = 3h = 8s = 8.2462V = 410.5
Worked stepsStep 5 of 5

Volume V=πh3(R2+Rr+r2)V = \dfrac{\pi h}{3}\left(R^2 + Rr + r^2\right)

Download figure
Figure data
Top radius3
Bottom radius5
Height8
Volume410.5
Slant height8.2462
Lateral area207.25
Total area314.06
Conical frustum in the Library: formulas and every calculator

Enter Calculation

Formula

V=13πHeight h(Radius R2+Radius RRadius r+Radius r2)V = \frac{1}{3}\pi\,{{\text{Height }h}}\left({{\text{Radius }R}}^{2} + {{\text{Radius }R}}\,{{\text{Radius }r}} + {{\text{Radius }r}}^{2}\right)
Show calculation steps (3)
  1. Slant Height

    ℓ=(Radius R−Radius r)2+Height h2\ell = \sqrt{\left({{\text{Radius }R}} - {{\text{Radius }r}}\right)^{2} + {{\text{Height }h}}^{2}}

    Slant height from the difference of radii and height

  2. Lateral Surface Area

    AL=π(Radius R+Radius r)(Radius R−Radius r)2+Height h2A_{L} = \pi\left({{\text{Radius }R}} + {{\text{Radius }r}}\right)\sqrt{\left({{\text{Radius }R}} - {{\text{Radius }r}}\right)^{2} + {{\text{Height }h}}^{2}}

    L = pi (R + r) * slant height

  3. Total Surface Area

    A=π(Radius R+Radius r)(Radius R−Radius r)2+Height h2+πRadius R2+πRadius r2A = \pi\left({{\text{Radius }R}} + {{\text{Radius }r}}\right)\sqrt{\left({{\text{Radius }R}} - {{\text{Radius }r}}\right)^{2} + {{\text{Height }h}}^{2}} + \pi\,{{\text{Radius }R}}^{2} + \pi\,{{\text{Radius }r}}^{2}

    Total area = lateral + bottom base (pi R^2) + top (pi r^2)

Usage stats

Advertisement

Results

Volume
410.5
cubic units
Slant height (l) 8.2462
Lateral surface area 207.25
Total surface area 314.06
Bottom base area 78.54
Top base area 28.27

Report an error on this page

What is a truncated cone?

A truncated cone — also called a conical frustum — is the solid you get when you slice the pointed top off a cone with a cut parallel to its base. It has two circular faces: a larger bottom of radius R and a smaller top of radius r, separated by a vertical height h. Everyday examples include buckets, lampshades, drinking cups and flower pots. This calculator returns the volume, slant height, lateral surface area and total surface area in one step.

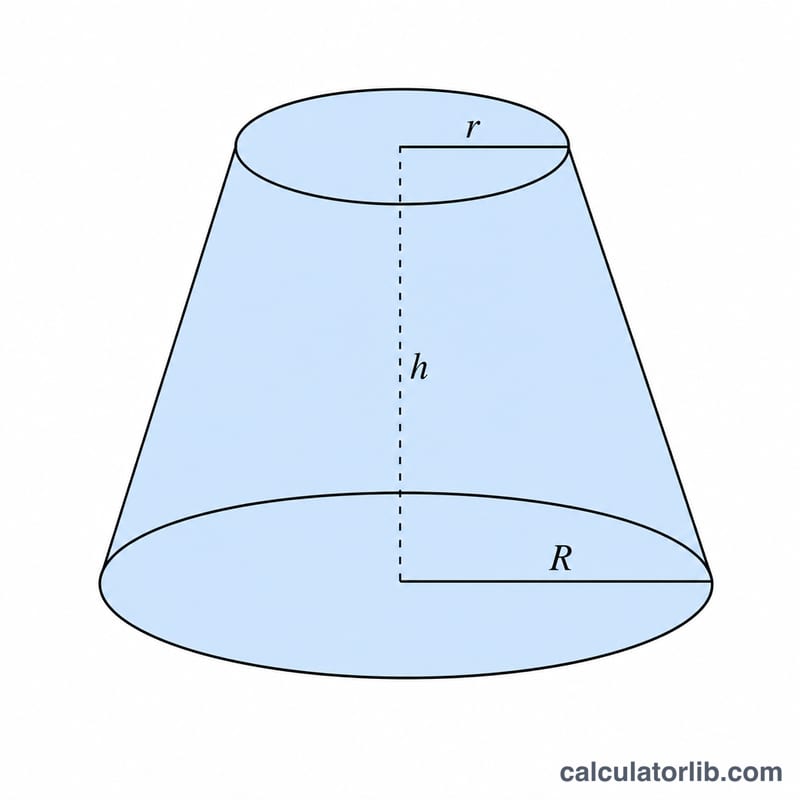

Labeled diagram of a truncated cone showing top radius, bottom radius and height
A truncated cone (frustum) with bottom radius R, top radius r and height h.

How to use this calculator

Enter the bottom radius R, the top radius r, and the perpendicular height h, all measured in the same units (cm, m, inches, etc.). The result gives the volume in cubic units and every surface measurement in square units. If you only know the diameters, divide each by two first. Setting \(r = 0\) turns the frustum back into a full cone.

The formulas explained

The volume is $$V = \tfrac{1}{3}\cdot\pi\cdot h\cdot\left(R^{2} + Rr + r^{2}\right),$$ an average of the two circular areas weighted by the cross-term \(Rr\). The slant height — the diagonal distance along the slanted side — is $$\ell = \sqrt{(R - r)^{2} + h^{2}}$$ from the Pythagorean theorem. The curved side, or lateral area, is $$A = \pi(R + r)\cdot\ell.$$ Adding the two flat circles (\(\pi R^{2}\) and \(\pi r^{2}\)) gives the total surface area.

Advertisement

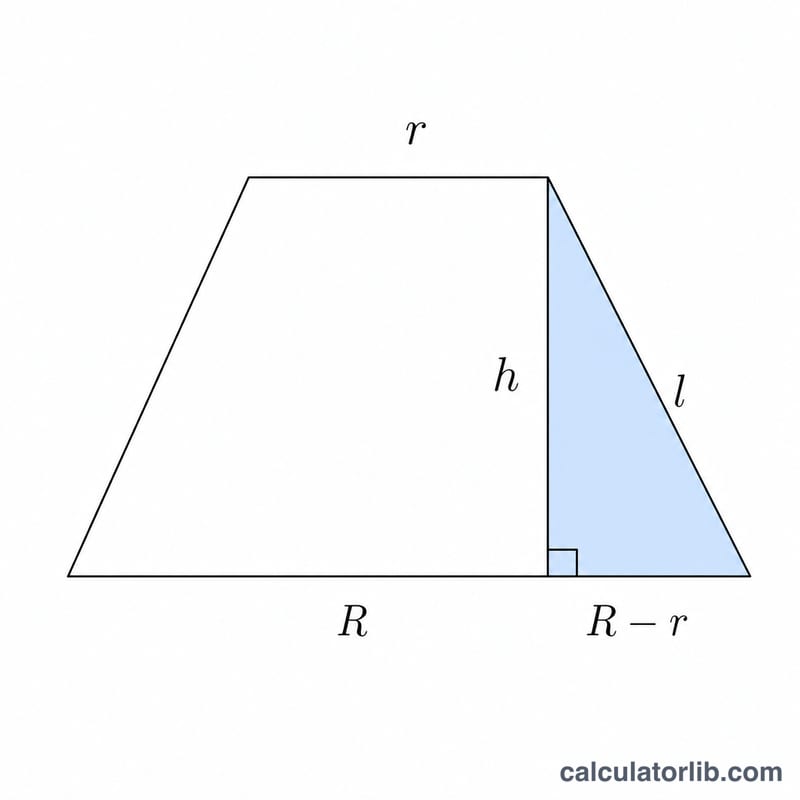

Truncated cone cross-section showing slant height as the hypotenuse of a right triangle
The slant height l forms the hypotenuse of a right triangle with legs h and (R − r).

Worked example

For \(R = 5\), \(r = 3\), \(h = 8\): $$V = \tfrac{1}{3}\cdot\pi\cdot 8\cdot(25 + 15 + 9) = \tfrac{1}{3}\cdot\pi\cdot 8\cdot 49 \approx 410.50 \text{ cubic units}.$$ The slant height $$\ell = \sqrt{(5-3)^{2} + 8^{2}} = \sqrt{68} \approx 8.246.$$ Lateral area \(= \pi\cdot(5+3)\cdot 8.246 \approx 207.24\) square units, and total area adds \(\pi\cdot 25 + \pi\cdot 9 \approx 314.06\).

How Radii and Height Change the Frustum

The table uses \(V=\tfrac{1}{3}\pi h\,(R^2+Rr+r^2)\), slant height \(\ell=\sqrt{(R-r)^2+h^2}\), lateral area \(L=\pi(R+r)\ell\) and total area \(A=L+\pi(R^2+r^2)\). Lengths are in any one unit, volumes in that unit cubed and areas in that unit squared. Values are rounded to 2 decimals.

Case R r h Volume Slant height ℓ Lateral area Total area
Existing example 5 3 8 410.50 8.25 207.25 314.06
Full cone (r = 0) 5 0 8 209.44 9.43 148.19 226.73
Cylinder (r = R) 5 5 8 628.32 8.00 251.33 408.41
Wide, shallow frustum 10 7 2 458.67 3.61 192.56 660.66
Doubled example (×2) 10 6 16 3284.01 16.49 829.00 1256.26
  • Cone and cylinder: setting r = 0 gives the cone formula \(\tfrac{1}{3}\pi R^2 h\). Setting r = R gives the cylinder formula \(\pi R^2 h\). Every frustum with the same R and h lies between the two volumes (209.44 and 628.32 here).
  • Scaling: doubling R, r and h multiplies every length by 2, every area by \(2^2=4\) and the volume by \(2^3=8\). Check: \(410.50\times 8\approx 3284.01\), \(314.06\times 4\approx 1256.26\).
  • Shallow frustum: a small height keeps the volume modest, but the two circular faces dominate the total area.

Volume Unit Conversions for Frustum Capacity

If R, r and h are entered in one unit, the volume comes out in that unit cubed. Use these standard conversions to express the capacity of a bucket, cup or tank.

From Equals
1 cm³ 1 mL
1000 cm³ 1 L
1 m³ 1000 L
1 in³ 16.387 cm³
1 US gallon 231 in³ = 3.785 L
1 ft³ 28.317 L = 7.481 US gallons

Areas square the factor. Lengths scale by a factor k, but areas scale by k² and volumes by k³. For example, 1 in = 2.54 cm, so 1 in² = 2.54² = 6.4516 cm². Likewise 1 ft² = 144 in².

Example: a frustum with R = 5 cm, r = 3 cm and h = 8 cm has a volume of about 410.50 cm³, which is 410.50 mL or about 0.41 L.

Advertisement

Key Terms and Variables

  • Frustum (truncated cone): the solid left when a cone is cut by a plane parallel to its base and the small top cone is removed.
  • Bottom radius R: the radius of the larger circular face.
  • Top radius r: the radius of the smaller circular face. r = 0 gives a full cone, and r = R gives a cylinder.
  • Perpendicular height h: the distance between the two circular faces, measured at right angles to them (not along the side).
  • Slant height ℓ: the length along the sloping side between the two rims, \(\ell=\sqrt{(R-r)^2+h^2}\).
  • Lateral surface area: the curved side only, \(L=\pi(R+r)\ell\).
  • Base/top faces: the two flat circles, with combined area \(\pi R^2+\pi r^2\).
  • Total surface area: lateral area plus both faces, \(A=\pi(R+r)\ell+\pi(R^2+r^2)\). For an open-topped container such as a bucket, leave out the top face.
  • Relation to the full cone: the frustum volume equals the volume of the large cone (base radius R) minus the volume of the removed small cone (base radius r). The two cones are similar, so the formula simplifies to \(\tfrac{1}{3}\pi h(R^2+Rr+r^2)\).
  • Diameter to radius: the calculator takes radii. If you measured diameters D and d, use \(R=D/2\) and \(r=d/2\).

FAQ

Is height the same as slant height? No. Height \(h\) is the straight vertical distance between the two circles; slant height \(\ell\) runs along the angled surface and is always longer.

Does it matter which radius is larger? No — the formulas are symmetric in \(R\) and \(r\), so swapping them gives the same volume and areas.

What units does it use? Any, as long as all three inputs share the same unit. Volume comes out cubed and areas squared.
