Tube
TubeTubeR = 5r = 3L = 10V = 502.65
Worked stepsStep 2 of 2

Volume V = ring area × length L

Download figure
Figure data
Outer radius5
Inner radius3
Length10
Volume502.65
Tube in the Library: formulas and every calculator

Enter Calculation

Formula

V=π·Height (h)·(Outer Radius (R)2−Inner Radius (r)2)V = \pi \cdot \text{Height (h)} \cdot \left( \text{Outer Radius (R)}^{2} - \text{Inner Radius (r)}^{2} \right)
Usage stats

Advertisement

Results

Hollow Cylinder Volume
502.65
cubic units
Outer cylinder volume 785.4
Inner (bore) volume 282.74
Wall thickness (R − r) 2

Report an error on this page

What Is a Hollow Cylinder?

A hollow cylinder — also called a tube, pipe or cylindrical shell — is a solid bounded by two concentric circular cylinders of the same height. It has an outer radius R, an inner radius r (the bore), and a height h. This calculator finds the volume of material that makes up the wall of such a shape, which is exactly the outer cylinder volume minus the inner cavity volume.

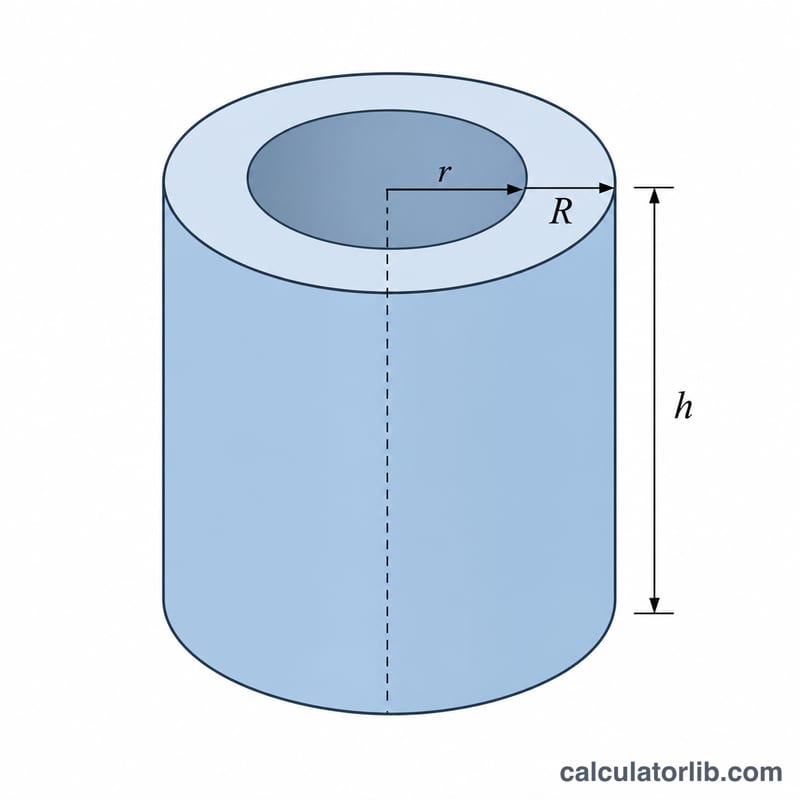

Hollow cylinder showing outer radius R, inner radius r and height h
A hollow cylinder defined by its outer radius R, inner radius r and height h.

How to Use This Calculator

Enter the outer radius, the inner radius and the height in any consistent unit of length (for example, all in centimeters). The calculator returns the hollow volume in the corresponding cubic units, along with the full outer cylinder volume, the inner bore volume, and the wall thickness. Make sure the inner radius is smaller than the outer radius — if they are equal, the volume is zero.

The Formula Explained

The volume of a full cylinder is \(\pi \cdot \text{radius}^{2} \cdot \text{height}\). For a hollow cylinder you subtract the inner cylinder from the outer one:

$$V = \pi \cdot h \cdot R^{2} - \pi \cdot h \cdot r^{2} = \pi \cdot h \cdot \left( R^{2} - r^{2} \right)$$

The term \((R^{2} - r^{2})\) captures the cross-sectional area of the ring (annulus), and multiplying by the height extrudes that ring into a 3-D shell.

Advertisement

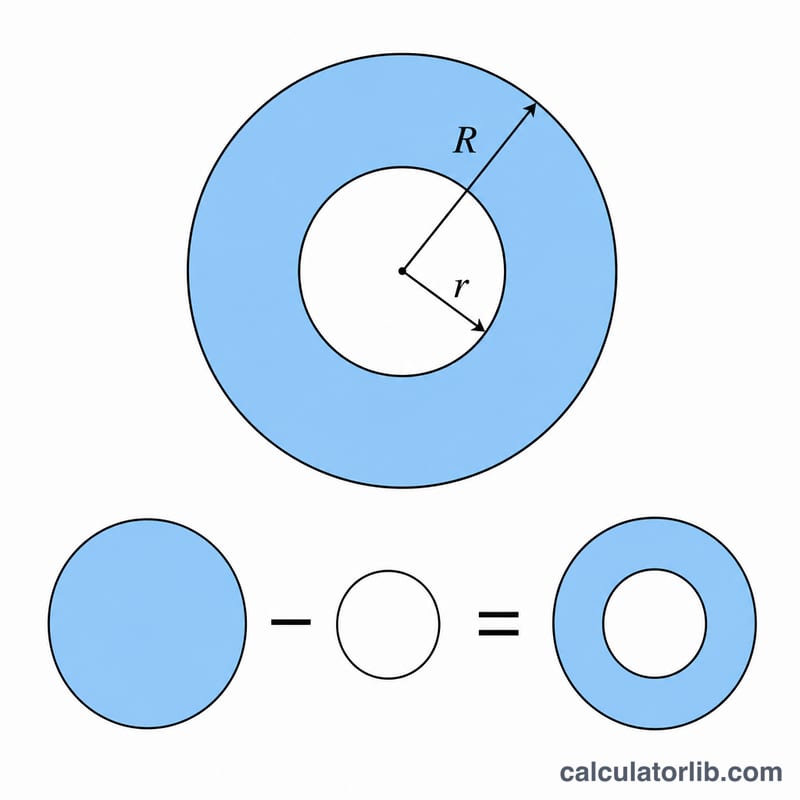

Top view of hollow cylinder ring showing area equals big circle minus small circle
The cross-section is a ring: the large circle (R) minus the small circle (r).

Worked Example

Suppose a pipe has an outer radius of 5 cm, an inner radius of 3 cm and a height of 10 cm. Then:

$$V = \pi \times 10 \times \left( 5^{2} - 3^{2} \right) = \pi \times 10 \times (25 - 9) = \pi \times 10 \times 16 = 160\pi \approx 502.65 \text{ cm}^{3}.$$
Advertisement

Volume Unit Conversions

The calculator returns the volume in cubic units of whatever length unit you enter for R, r and h. Use the table below to convert the result into other common units. Note that this is the volume of the wall material (the solid between the inner and outer surfaces), not the internal fluid capacity of the pipe.

From Equals
1 cm³ 1 mL
1000 cm³ 1 L
1 m³ 1000 L = 1,000,000 cm³
1 mm³ 0.001 mL
1 in³ 16.387 cm³
1 ft³ 28.317 L = 1728 in³

FAQ

What units does it use? Any unit of length works as long as all three inputs use the same unit; the result is in those units cubed.

Can I use diameter instead of radius? No — divide each diameter by 2 first to get the radius, then enter the radii.

What if R equals r? The wall has zero thickness, so the volume is zero. The inner radius must be less than the outer radius for a real hollow cylinder.
