Volume and Surface Area of a Truncated (Partial) Ellipsoid

Volume and Surface Area of a Truncated (Partial) Ellipsoid

Popular AI Skill PRO

Enter Calculation

Formula

V=πabc[(u−1)−(u−1)33+23]whereu=Height hc\begin{gathered} V = \pi\,\text{a}\,\text{b}\,\text{c}\left[(u-1) - \frac{(u-1)^{3}}{3} + \frac{2}{3}\right] \\[1.5em] \text{where}\quad u = \frac{{{\text{Height }h}}}{\text{c}} \end{gathered}
Show calculation steps (3)
  1. Flat Cut Face Area

    Aflat=πab(2u−u2),u=hcA_{\text{flat}} = \pi\,\text{a}\,\text{b}\left(2u - u^{2}\right), \quad u = \frac{\text{h}}{\text{c}}

    Elliptical cross-section at the cut; u = h/c

  2. Curved Lateral Surface Area

    Acurved=∫02π∫0ϕmax⁡sin⁡ϕc2sin2ϕ(b2cos2θ+a2sin2θ)+a2b2cos2ϕdϕdθwhere{a=Semi-axis ab=Semi-axis bc=Semi-axis cϕmax⁡=arccos⁡(hc−1)\begin{gathered} A_{\text{curved}} = \int_{0}^{2\pi}\!\!\int_{0}^{\phi_{\max}} \sin\phi\,\sqrt{c^{2}\sin^{2}\!\phi\,(b^{2}\cos^{2}\!\theta + a^{2}\sin^{2}\!\theta) + a^{2}b^{2}\cos^{2}\!\phi}\;\, d\phi\, d\theta \\[1.5em] \text{where}\quad \left\{ \begin{aligned} a &= \text{Semi-axis a} \\ b &= \text{Semi-axis b} \\ c &= \text{Semi-axis c} \\ \phi_{\max} &= \arccos\!\left(\frac{\text{h}}{\text{c}} - 1\right) \end{aligned} \right. \end{gathered}

    Numerically integrated over phi from 0 to arccos(u-1) and theta from 0 to 2 pi; uses semi-axes a, b, c

  3. Total Surface Area

    S=Aflat+AcurvedS = A_{\text{flat}} + A_{\text{curved}}

    Sum of the flat cut face and the curved lateral surface

Usage stats

Advertisement

Results

Volume V
31.808626
cubic units (length³)
Surface area S
89.203364
square units (length²)
Flat cut face area 17.671459
Curved lateral area 71.531905

Report an error on this page

What this calculator does

This tool computes the volume and surface area of a truncated (partial) triaxial ellipsoid. Start with a full ellipsoid centered at the origin with semi-axes a, b and c, defined by \((x/a)^2 + (y/b)^2 + (z/c)^2 = 1\). The c-axis is vertical, running from \(z = -c\) (bottom) to \(z = +c\) (top). We slice the solid with a horizontal plane and keep the bottom cap of height h measured up from \(z = -c\). This is pure, universal geometry and applies anywhere — all four inputs are plain numbers in one shared length unit.

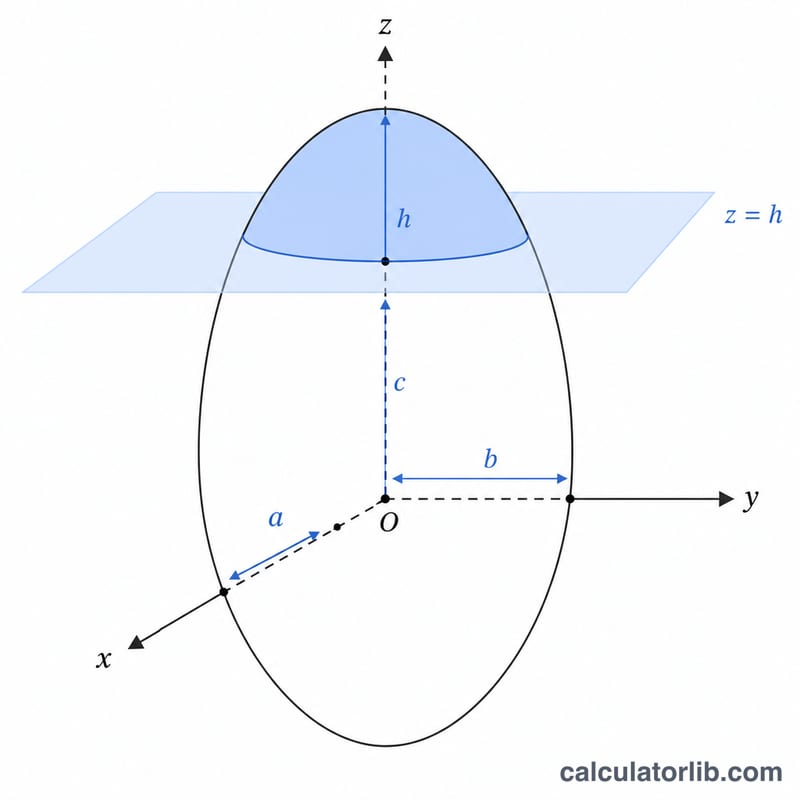

Triaxial ellipsoid with semi-axes a, b, c cut by a horizontal plane at height h, upper cap shaded
A triaxial ellipsoid cut by a horizontal plane at height h, leaving the shaded partial (truncated) cap.

How to use it

Enter the three semi-axes a, b, c and the cut height h. The height must satisfy \(0 \le h \le 2c\); at \(h = 2c\) you get the whole ellipsoid, and at \(h = c\) you get exactly half of it. Results are returned in the same length unit you used: volume in cubic units and surface area in square units. There are no unit dropdowns, so no scaling is applied.

The formula explained

Let \(u = h/c\) be the dimensionless fill fraction. Integrating the elliptical cross-section area \(\pi ab\left(1 - (t/c)^2\right)\) from the bottom upward gives the exact closed form $$V = \pi\,a\,b\,c\left[(u-1) - \frac{(u-1)^3}{3} + \frac{2}{3}\right]$$ The surface area splits into two pieces: a flat elliptical cut face of area $$A_{\text{flat}} = \pi\,a\,b\left(2u - u^2\right)$$ and a curved lateral cap. Because a triaxial ellipsoid surface has no elementary closed form, the curved part is computed by a numerical (Simpson) double integral of the ellipsoid surface element over \(\theta\) in \([0, 2\pi]\) and \(\phi\) in \([0, \arccos(u-1)]\). $$A_{\text{curved}} = \int_{0}^{2\pi}\!\!\int_{0}^{\phi_{\max}} \sin\phi\,\sqrt{c^{2}\sin^{2}\!\phi\,(b^{2}\cos^{2}\!\theta + a^{2}\sin^{2}\!\theta) + a^{2}b^{2}\cos^{2}\!\phi}\;\, d\phi\, d\theta$$ $$S = A_{\text{flat}} + A_{\text{curved}}$$

Advertisement

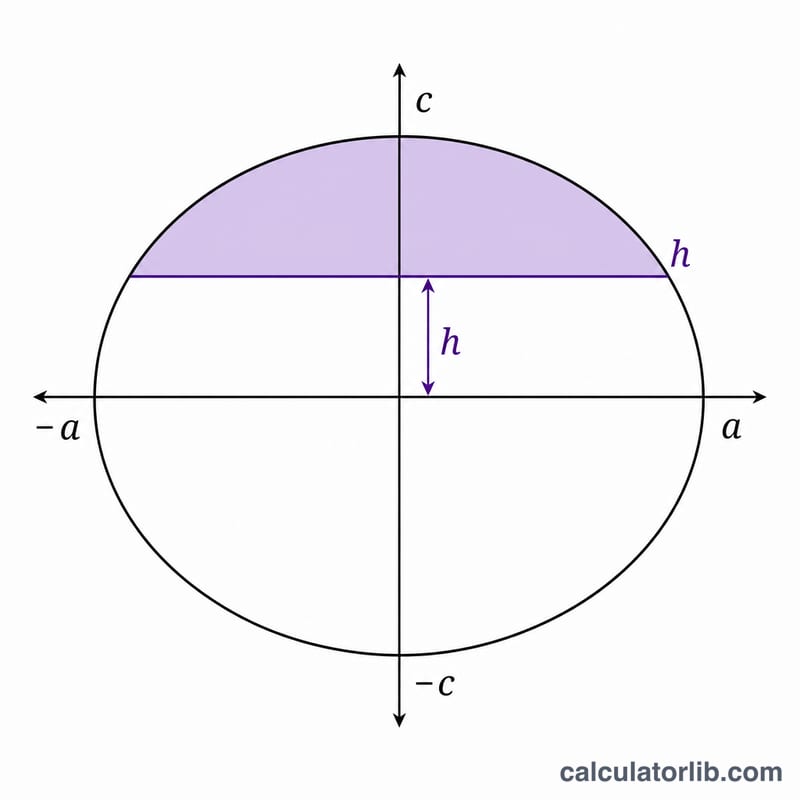

Vertical cross-section of ellipsoid showing semi-axes a and c with cut height h and shaded cap
Cross-section showing how the cut height h relates to the semi-axis c \((u = h/c)\).

Worked example

Take \(a = 2\), \(b = 3\), \(c = 4\), \(h = 3\), so \(u = 0.75\). Volume term \(= (-0.25) - (-0.25)^3/3 + 2/3 = 0.421875\), giving $$V = \pi\cdot 24\cdot 0.421875 \approx \mathbf{31.81}$$ The flat face has \(k^2 = 2u - u^2 = 0.9375\), area \(= \pi\cdot 6\cdot 0.9375 \approx 17.67\). The curved cap integrates to about \(81.2\), so the total surface area \(S \approx \mathbf{98.9}\).

Advertisement

Definitions of Terms and Variables

Semi-axes a, b, c
The three half-lengths of the ellipsoid, measured from its center to its surface along the x, y and z directions. All must be positive. The full ellipsoid spans 2a, 2b and 2c along these directions.
Triaxial ellipsoid
An ellipsoid whose three semi-axes may all differ. It satisfies \(\tfrac{x^2}{a^2}+\tfrac{y^2}{b^2}+\tfrac{z^2}{c^2}=1\). A sphere (a = b = c) and a spheroid (two equal axes) are special cases.
Truncated (partial) ellipsoid / cap
The part of the ellipsoid that lies below a horizontal plane. It is a solid with one flat elliptical face and one curved surface. This is the shape of a partly filled horizontal-axis-free ellipsoidal vessel or a cut dome.
Cut height h
The vertical distance from the lowest point of the ellipsoid (z = −c) up to the cutting plane. It is measured from the bottom, not from the center.
Fill fraction u
The ratio \(u = h/c\). It is 0 at the bottom, 1 at the center plane and 2 at the top. It is not a volume fraction. The volume fraction is a nonlinear function of u.
Flat (elliptical) cut face
The cross-section at the cutting plane. Its semi-axes are \(a\sqrt{2u-u^2}\) and \(b\sqrt{2u-u^2}\), so its area is \(\pi ab\,(2u-u^2)\).
Curved lateral surface
The part of the ellipsoid's own surface below the cut. The calculator reports the surface area from this part, with the flat face considered separately. Triaxial ellipsoids have no simple closed-form surface area, so this part is computed numerically.
Simpson numerical integration
A method that approximates a definite integral by fitting parabolas through evenly spaced sample points. It is accurate for smooth integrands and is used here for the surface area integral. The volume, by contrast, is computed exactly from the formula.
Valid input range
The semi-axes must be positive and the height must satisfy \(0 \le h \le 2c\). At h = 0 the volume is zero, and at h = 2c it is the full ellipsoid. Heights outside this range do not describe a cut through the ellipsoid.

FAQ

Is the volume exact? Yes — the volume is a closed-form result with no approximation.

Is the surface area exact? The flat cut face is exact; the curved cap is computed by high-resolution numerical integration (\(64\times 64\) panels), which is accurate to several significant digits.

What if \(h > 2c\)? The height is clamped to \(2c\), which corresponds to the full ellipsoid (flat area becomes zero).
